Name: C9606R-48Y24C-BN-A
SKU: C9606R-48Y24C-BN-A
Availability: InStock

C9606R-48Y24C-BN-A

Model: C9606R-48Y24C-BN-A – Cisco Switch Catalyst 9600
Details: Catalyst 9600 Series 6 slot bundle,with 1xSup,2xLC,DNA-A LIC
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

C9606R-48Y24C-BN-A Overview

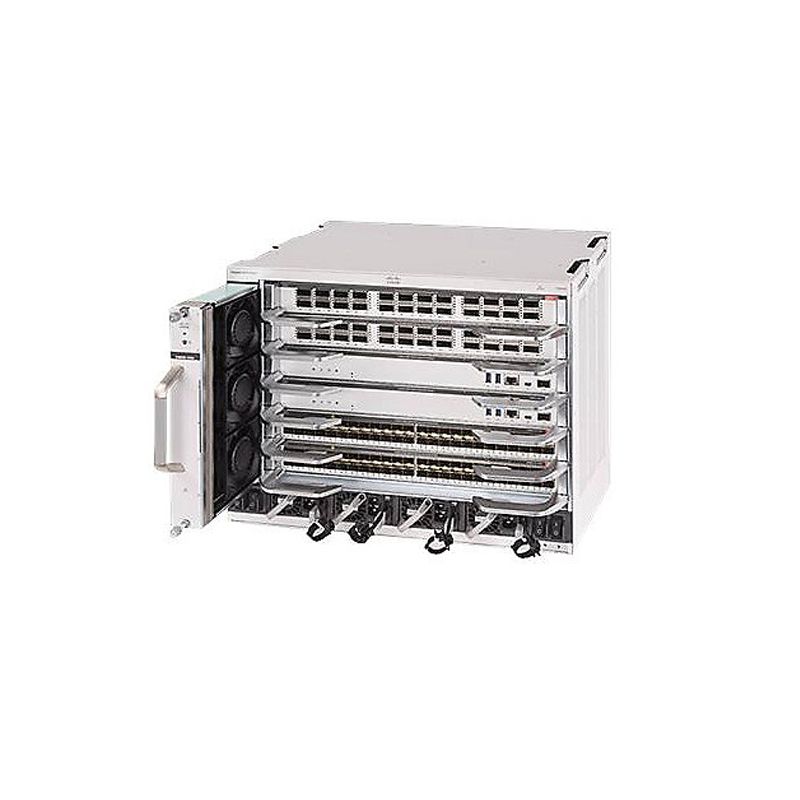

Quick Specs Figure 1 shows the appearance of C9606R-48Y24C-BN-A.

Table 1 shows the Quick Specs.

Product Code	C9606R-48Y24C-BN-A
Product Description	Catalyst 9600 Series 6 slot, 1xSup, 2xLC , DNA-A LIC
Dimensions (H x W x D)	35.43 x 44.2 x 40.9 cm13.95 x 17.4 x 16.1 in.
Rack Units (RU)	8
Total number of slots	6
Line-card slots	4
Supervisor engine slots	2
Dedicated supervisor engine slot numbers	3 and 4
Supervisor engine redundancy	Yes
Supervisor engines supported	C9600-SUP-1
Maximum bandwidth scalability per line-card slot	6.4 Tbps2.4 Tbps*
Number of power supply bays	4
Minimum number of power supplies	2*
Power supplies supported	2000W AC, 2000W DC
Number of fan-tray bays	1
Input voltage	AC: 90V to 264V, 47 to 63 Hz ACDC: -40V to -72V
Operating temperature	-5°to 45°C (23°to 113°F) up to 6000 feet-5°to 40°C (23°to 104°F) up to 10,000 feet
Storage temperature	-40°to 75°C (40°to 167°F)
Relative humidity, operating and nonoperating, noncondensing	10% to 95%, noncondensing
Altitude	-60 to 3000 m (-197 to 9843 feet)
Mean Time Between Failures (MTBF) (hours)	C9606R chassis: 4,113,900C9606 fan tray: 452,570
Weight of fan tray	3.56 kg(7.85 lb)
Weight of individual PSUs	AC PSU: 1.2 kg (2.65 lb)DC PSU: 1.28 kg (2.82 lb)
Safety certifications	C9606R•IEC 60950-1 plus Am1, Am2, Am9, Am10, Am11, Am12 and all deviations and differences•AS/NZS 60950.1.2011•CAN/CSA-C22.2 No. 60950-1-07•GB 4943-95•EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences•NOM-019-SCFI-1998•UL 60950-1, Second Edition
EMI and EMC compliance	47 CFR Part 15 Class ACNS13438: 2006Class AEN 300 386 V1.6.1EN61000-3-2: 2014EN61000-3-3: 2013ICES-003 Issue 6: 2016Class AKN 32: 2015Class ATCVN 7189: 2009Class AEN 55032:2012/ AC:2013 Class AEN 55032:2015 Class ACISPR 32 Edition 2Class AV-2/2015.04Class AV-3/2015.04 Class ACISPR24: 2010 + A1: 2015EN 300 386 V1.6.1EN55024: 2010 + A1: 2015KN35: 2015TCVN 7317: 2003

Get more information
Do you have any question about the C9606R-48Y24C-BN-A?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

100% Quality Assurance: All items are ORIGINAL and GENUINE only. Item conditions are “New Sealed” or “Used / Refurbished”. Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support: Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee: You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured

-5%

Click to enlarge

Original price was: $50,236.00.Current price is: $47,724.20.
