C9K-PWR-650WAC-R
Model: C9K-PWR-650WAC-R – Cisco Switch Catalyst 9500 Accessories
Details: 650W AC Power Supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C9K-PWR-650WAC-R Overview

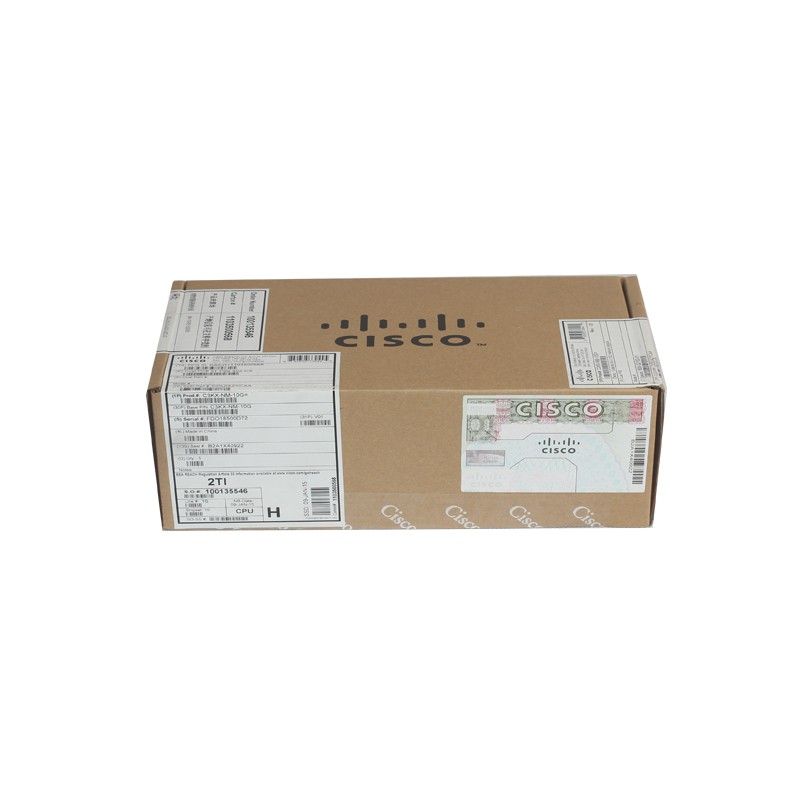

Quick Specs Figure 1 shows the appearance of C9K-PWR-650WAC-R.
Table 1 shows the Quick Specs.
| Product Type | Power Supply |
| Power Output | 650W |
| Input Voltage | 100-240V AC |
| Frequency | 50-60Hz |
| Efficiency | 85% (typical) |
| Form Factor | Plug-in Module |
| Compatibility | Cisco Catalyst 9000 Series Switches |
| Cooling | Active (Integrated Fan) |
| Operating Temperature | 0?? to 45??C |
| Storage Temperature | -40?? to 70??C |
| Humidity | 10% to 90% (non-condensing) |
| Total Harmonic Distortion | < 10% |
| MTBF | 200,000 hours |
| Protection Features | Over Voltage, Over Current, Over Temperature |
| Connector Type | IEC 60320 C14 |
| Dimensions (H x W x D) | 1.6 x 3.2 x 15.8 inches |
| Input Current | 8A (RMS) at 100-120V, 4A (RMS) at 200-240V |
| Noise Level | 46 dBA |
| Safety Standards | UL/CSA 60950-1, EN60950-1 |
