VTM119
VTM119 $0.00

CA-M183H

$0.00

Model: CA-M183H – Dahua Mobile
Details: Dahua 720TVL Mobile Analog Dome Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

Add to compare
Add to wishlist
Add to quote
SKU: CA-M183H Categories: , , ,
Description

CA-M183H Overview

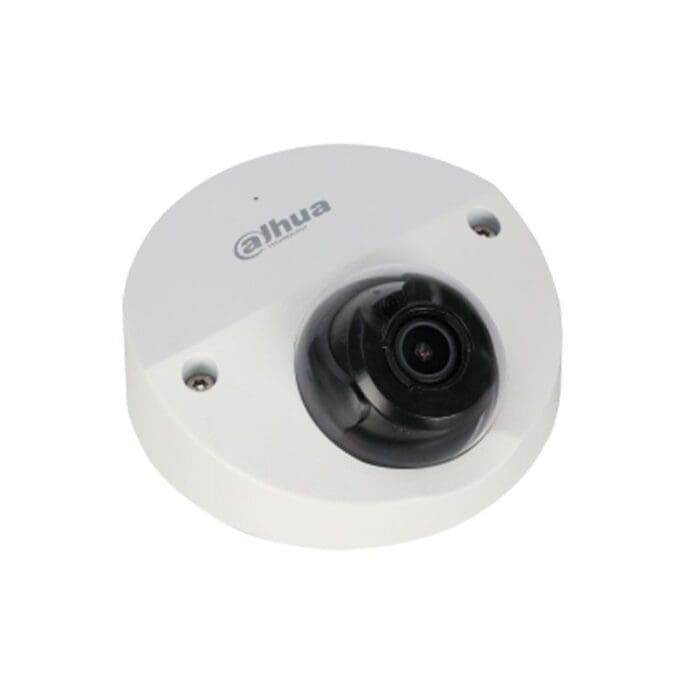

Quick Specs Figure 1 shows the appearance of CA-M183H.

Table 1 shows the Quick Specs.

Image Sensor 1/3″ CMOS
Effective Pixels 1280(H)×720(V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000sNTSC: 1/30~1/100000s
Minimum Illumination 0.05Lux/F2.0, 0.001lux/F2.0(B/W)
S/N Ratio More than 65dB
IR Distance NA
IR On/Off Control NA
IR LEDs NA
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 2.1mm (2.8/3.6/6mm Optional)
Max Aperture F2.0
Angle of View H: 107° (87°/69°/45°)
Focus Control N/A
Close Focus Distance 300mm (400/700/1350mm)11.8” (15.7”2/27.6”/53.1”)
Detect 25px/m(8px/ft)
Observe 63px/m(19px/ft)
Recognize 125px/m(38px/ft)
Identify 250ppm(76px/ft)
Pan/Tilt/Rotation Pan: 0° ~ 60°Tilt: 0° ~ 80°Rotation: 0° ~ 360°
Resolution PAL:960*576;NTSC:960*480
Frame Rate PAL:50fps;NTSC:60fps
Video Output 1-channel BNC Analog video output (Aviation connector)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Certifications CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1)EN50155 (EN50121-3-2, IEC61373)
Audio Interface Built-in Mic
Power Supply 12V DC ±25%
Power Consumption Max 0.79W
Operating Conditions -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection &Vandal Resistance IP67,IK10
Casing Aluminium
Dimensions 106mm×50.3mm (4.17″×1.98″)
Net Weight 0.304kg (0.66lb)
Gross Weight 0.42kg (0.93lb)
