CA-MW183H-IR1

$0.00

Model: CA-MW183H-IR1 – Dahua Mobile
Details: Dahua 720TVL Mobile Analog IR Dome Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

Add to compare
Add to wishlist
Add to quote
SKU: CA-MW183H-IR1 Categories: , , ,
Description

CA-MW183H-IR1 Overview

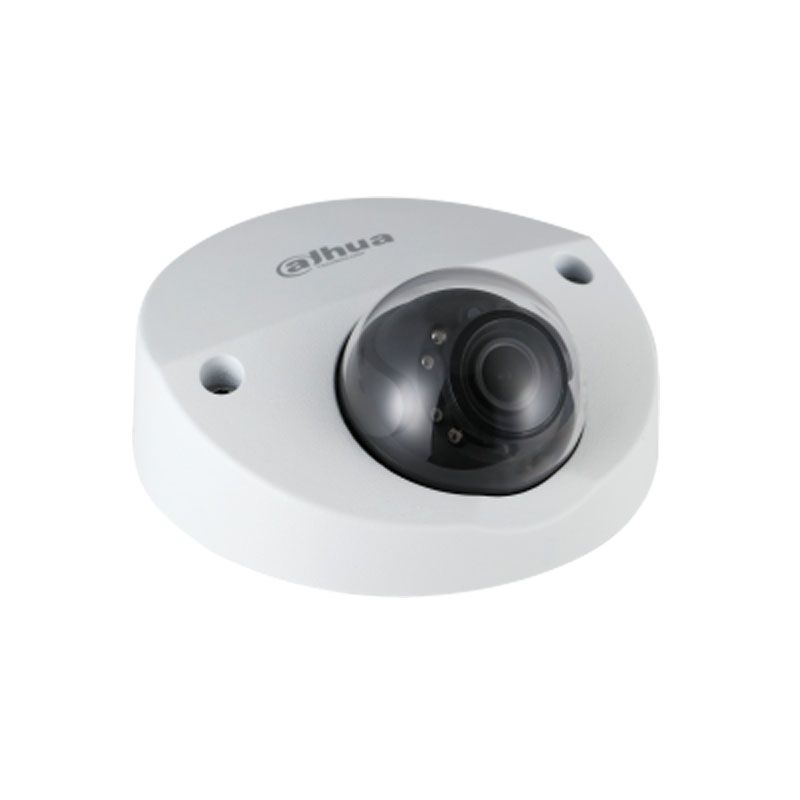

Quick Specs Figure 1 shows the appearance of CA-MW183H-IR1.

Table 1 shows the Quick Specs.

Image Sensor 1/3″ CMOS
Effective Pixels 1280(H)×720(V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000sNTSC: 1/30~1/100000s
Minimum Illumination 0.05Lux/F2.0, 0Lux IR on,30IRE
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 8
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 2.8mm (3.6/6mm Optional)
Max Aperture F2.0
Angle of View H: 87° (69°/45°)
Focus Control N/A
Close Focus Distance 400mm (700mm/1350mm)15.7” (27.6”/53.1”)
Detect 25px/m(8px/ft)
Observe 63px/m(19px/ft)
Recognize 125px/m(38px/ft)
Identify 250ppm(76px/ft)
Pan/Tilt/Rotation Pan: 0° ~ 60°Tilt: 0° ~ 80°Rotation: 0° ~ 360°
Resolution PAL:960*576;NTSC:960*480
Frame Rate PAL:50fps;NTSC:60fps
Video Output 1-channel BNC Analog video output (Aviation connector)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1)EN50155 (EN50121-3-2, IEC61373)
Audio Interface Built-in Mic
Power Supply 12V DC ±25%
Power Consumption Max 2.11W
Operating Conditions -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection &Vandal Resistance IP67,IK10
Casing Aluminium
Dimensions 106mm×50.3mm (4.17″×1.98″)
Net Weight 0.327kg (0.72lb)
Gross Weight 0.44kg (0.98lb)
