CAB-75ohm-100

Original price was: $13.00.Current price is: $12.35.

Model: CAB-75ohm-100 04024298 Huawei Trunk Cable
Details: 10.00m,75ohm,2.2mm,BNC75AM-II,SYFVZ75-1.2/0.25,BNC75AM-II,C&C08A,DL3444
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Description

CAB-75ohm-100 Overview

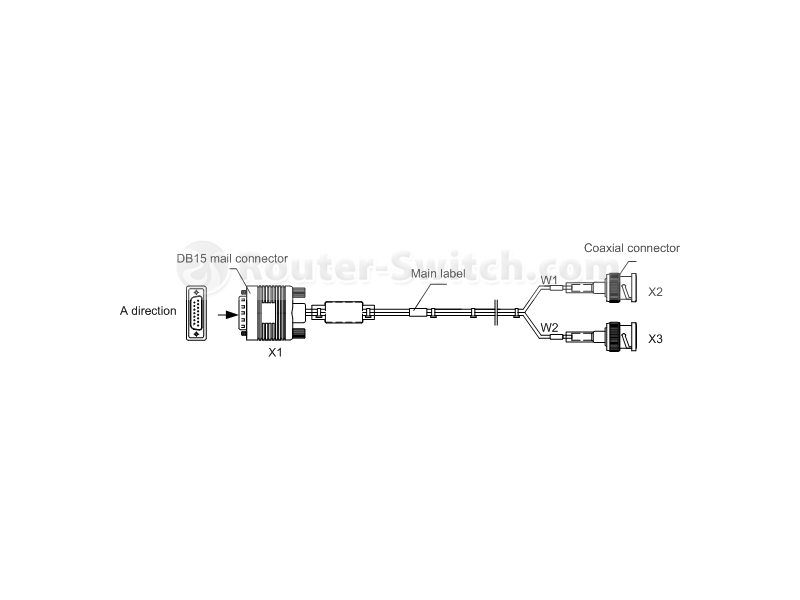

Quick Specs Figure 1 shows the appearance of CAB-75ohm-100.

Table 1 shows the Quick Specs.

Brand Huawei
Model CAB-75ohm-100
Length 10.00m
Impedance 75 ohm
Diameter 2.2mm
Connector Type BNC75AM-II
Cable Type SYFVZ75-1.2/0.25
Additional Connector Type BNC75AM-II
Flame Retardant Standard C&C08A
Certification DL3444
Jacket Material PVC
Shielding Braided
Temperature Rating -20°C to +60°C
Color Black
Inner Conductor Material Solid Copper
Velocity Ratio 82%
Capacitance 66 pF/m
Attenuation 18.9 dB/100m @ 50 MHz
Insulation Resistance ° 5000 M°/km
Frequency Range Up to 1000 MHz
