-5%
CAB-E1-120ohm-G.703-40
Model: CAB-E1-120ohm-G.703-40 Huawei Trunk Cable
Details: G.703 Cable,40.00m,120ohm,1E1,0.4mm,D15M+Magnetic Ring17010171,120CC2P0.4P430U(S),MP8-II
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CAB-E1-120ohm-G.703-40 Overview

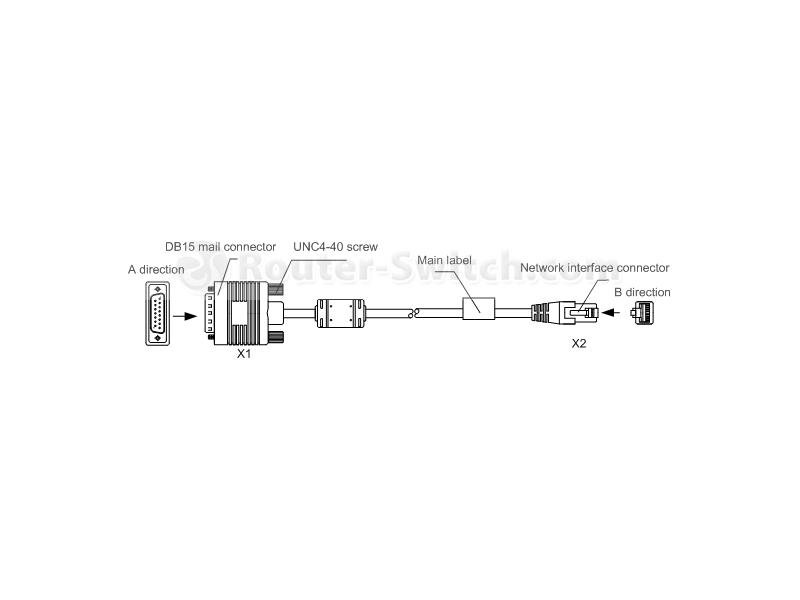

Quick Specs Figure 1 shows the appearance of CAB-E1-120ohm-G.703-40.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Name | CAB-E1-120ohm-G.703-40 |
| Cable Type | G.703 |
| Length | 40.00m |
| Impedance | 120 ohms |
| Supported Signal | 1E1 |
| Conductive Core Diameter | 0.4mm |
| Connector Type | D15M |
| Magnetic Ring | Y |
| Internal Part Number | 17010171 |
| Insulation Material | 120CC2P0.4P430U(S) |
| Product Family | MP8-II |
| Application | Telecom Network |
| Compliance | IEC Standards |
| Environmental Protection | RoHS compliant |
| Packaging | Individual Bag |
| Shielding | Yes |
| Flexibility | High |
| Operating Temperature Range | -20°C to 70°C |
| Storage Temperature Range | -40°C to 80°C |
| Outer Jacket Material | PU |
