-5%
Cable-120ohm
Model: Huawei Trunk Cable Cable-120ohm 04040150
Details: G.703 Cable,20.00m,120ohm,1E1,0.4mm,D15M+Magnetic Ring17010171,120CC2P0.4P430U(S),MP8-II
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Cable-120ohm Overview

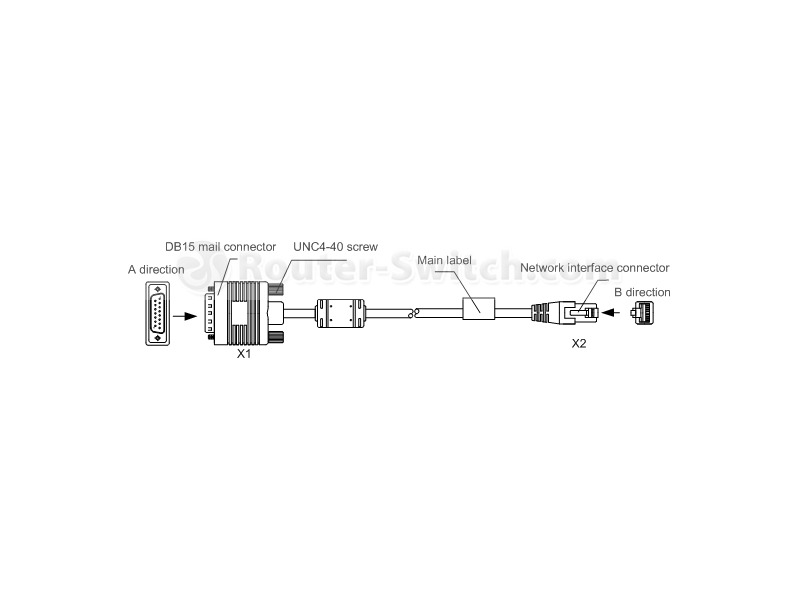

Quick Specs Figure 1 shows the appearance of Cable-120ohm.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | Cable-120ohm |
| Type | G.703 Cable |
| Length | 20.00m |
| Impedance | 120 ohm |
| Connector Type | 1E1 |
| Core Diameter | 0.4mm |
| Magnetic Ring | D15M + Magnetic Ring17010171 |
| Product Code | 120CC2P0.4P430U(S) |
| Compliance Standard | MP8-II |
| Shielding | Yes |
| Applicable Standards | G.703 |
| Color | Black |
| Operating Temperature | -20°C to 70°C |
| Jacket Material | PVC |
| Flame Retardant | Yes |
| Application | Telecommunication Systems |
| Minimum Bend Radius | 15 mm |
| Maximum Voltage | 300V |
| Flexibility | High |
| Installation Type | Indoor/Outdoor |
