-5%
CE-L24LQ-EC1
Model: CE-L24LQ-EC1 CE12804SA-B1 Huawei CE12800 Series Data Center Switch
Details: 24-Port-40G Interface Card(EC1,QSFP+)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CE-L24LQ-EC1 Overview

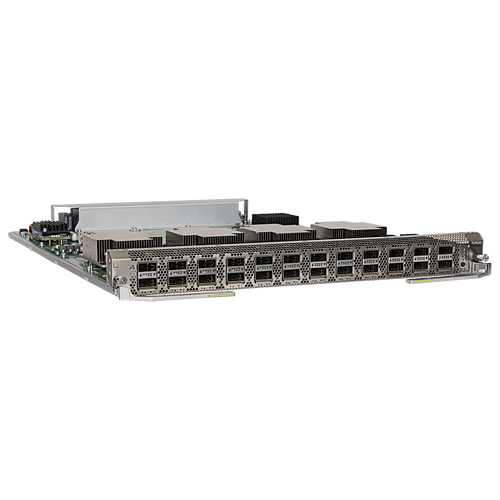

Quick Specs Figure 1 shows the appearance of CE-L24LQ-EC1.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Name | CE-L24LQ-EC1 |
| Port Quantity | 24 |
| Port Type | 40G QSFP+ |
| Interface Type | Ethernet |
| Data Transfer Rate | 40 Gbps per port |
| Total Bandwidth | 960 Gbps |
| Form Factor | Plug-in Module |
| Compatible Devices | Huawei CloudEngine Series |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| Power Consumption | 150W typical, 180W maximum |
| MTBF | 1,000,000 hours |
| Regulatory Compliance | FCC, CE, RoHS |
| RoHS Compliant | Yes |
| Hot Swappable | Yes |
| LED Indicators | Yes |
| Cooling | Yes, Fan Cooled |
| Warranty | Limited Lifetime Warranty |
