-5%
CE5855-24T4S2Q-EI
Model: CE5855-24T4S2Q-EI – Huawei Data Center Switches CE 5800 Series
Details: Huawei CE5855-24T4S2Q-EI Switch(24-Port GE RJ45,4-Port 10G SFP+,2-Port 40G QSFP+,Without Fan and Power Module).
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CE5855-24T4S2Q-EI Overview

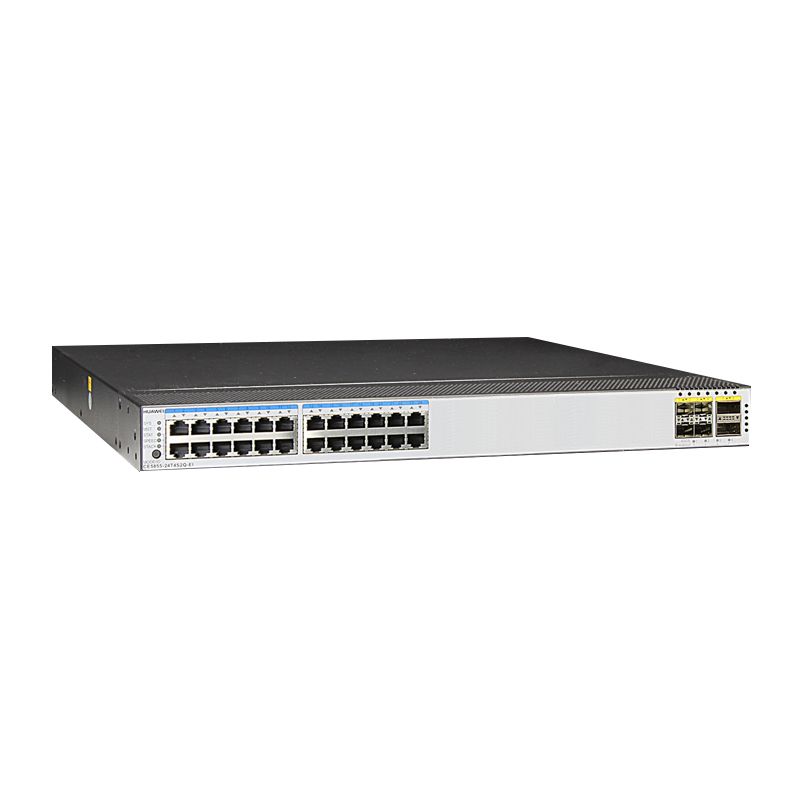

Quick Specs Figure 1 shows the appearance of CE5855-24T4S2Q-EI.
Table 1 shows the Quick Specs.
| Model | CE5855-24T4S2Q-EI |
| Relative humidity | 5% RH to 95% RH, noncondensing |
| Altitude | < 5000 m (16404 ft.) |
| Power source type | AC/DC |
| AC power input | Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz |
| DC power input | Rated voltage range: -48 V DC to -60 V DC |
| High-voltage DC power input | Not supported |
| Maximum power consumption | 75 W |
| Typical power consumption | 48 W (100% throughput, 3 m Ethernet cables on 24 ports and SFP+ cables on 4 ports and QSFP+ cables on 2 ports, double power modules) |
| Maximum heat dissipation | 256 BTU/hr |
| Typical heat dissipation | 164 BTU/hr (100% throughput, 3 m Ethernet cables on 24 ports and SFP+ cables on 4 ports and QSFP+ cables on 2 ports, double power modules) |
| Heat dissipation mode | Air cooling |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules |
| Power module backup | 1+1 backup |
| Fan module backup | 1+1 backup not supported |
| Hot swap | Supported by all power modules and fan modules |
| Processor | 1 GHz, dual-core |
| DRAM Memory | 2 GB |
| NOR Flash | 16 MB |
| NAND Flash | 512 MB |
| Service port supporting the stack function | 10GE optical ports and 40GE optical ports |
