CE6850-48S4Q-EI-B
Model: Huawei CE6850-48S4Q-EI Switch (48-Port 10G SFP+,4-Port 40G QSFP+,2*FAN Box,Port-side Intaket,Without Power Module)
Details: Huawei CE6850-48S4Q-EI Switch (48-Port 10G SFP+,4-Port 40G QSFP+,2*FAN Box,Port-side Intaket,Without Power Module)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CE6850-48S4Q-EI-B Overview

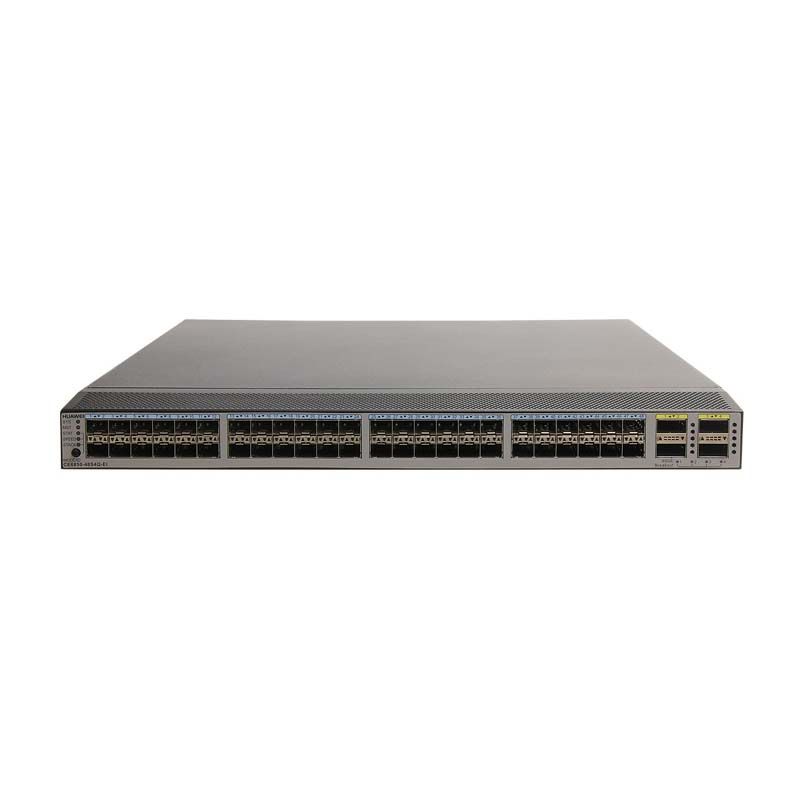

Quick Specs Figure 1 shows the appearance of CE6850-48S4Q-EI-B.
Table 1 shows the Quick Specs.
| 10G Base-T Ports | 0 |
| SFP+ Ports | 48 |
| FC Ports | 0 |
| QSFP+ Ports | 4 |
| Switching Capacity | 1.28 Tbit/s |
| Forwarding Rate | 960 Mpps |
| Airflow Design | Front-to-back or back-to-front |
| Device Virtualization | iStack |
| Network Virtualization | M-LAG |
| VM Awareness | Agile Controller |
| Network Convergence | FCoE |
| Programmability | OpenFlow |
| Traffic Analysis | NetStream |
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
| ACL | Ingress: 2,250 Egress: 1,000 |
| MAC Address Table | Maximum: 128k |
| ARP (maximum) | 16k |
| IPv4 FIB (maximum) | 16k |
| IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
| IPv6 FIB (maximum) | 8k |
| IPv6 | IPv6 Neighbor Discovery (ND) |
| Multicast FIB (maximum) | 4k |
| Multicast | IGMP, PIM-SM, PIM-DM, MSDP, and MBGP |
| MPLS | MPLS (CE6800HI) |
| Reliability | LACP |
| QoS | Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
| Configuration and Maintenance | Console, Telnet, and SSH terminals |
| Security and Management | 802.1x authentication |
| Dimensions (W x D x H) | 442 mm x 600 mm x 43.6 mm |
| Weight (fully loaded) | 11 kg (24.2 lb) |
| Environmental Parameters | Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m)Storage temperature: -40°C to 70°C (-40°F to 158°F)Relative humidity: 5% RH to 95% RH, non-condensing |
| Operating Voltage | AC: 90V to 290VDC: -38.4V to -72V |
| Max. Power Consumption | 272W |
