CE6850U-48S6Q-HI
Model: CE6850U-48S6Q-HI – Huawei Data Center Switches CE 6800 Series
Details: Huawei CE6850U-48S6Q-HI Switch(48-Port UP SFP+.6-Port 40GE QSFP+.Without Fan and Power Module).
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CE6850U-48S6Q-HI Overview

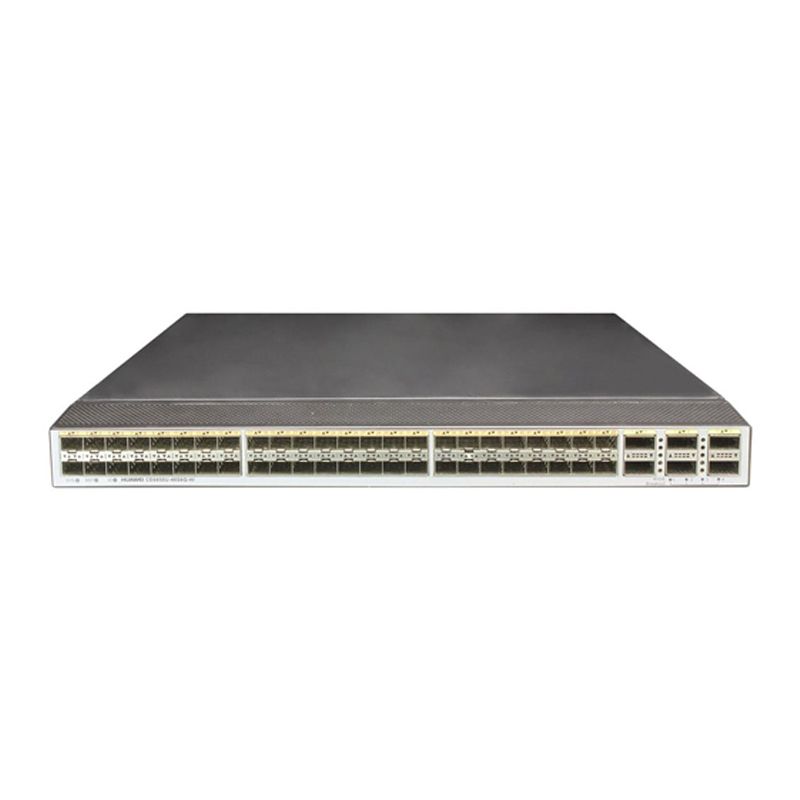

Quick Specs Figure 1 shows the appearance of CE6850U-48S6Q-HI.
Table 1 shows the Quick Specs.
| Model | CE6850U-48S6Q-HI |
| Power source type | AC/DC/high-voltage DC |
| Heat dissipation mode | Air cooling |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules |
| Power module backup | 1+1 backup |
| Fan module backup | 1+1 backup not supported |
| Maximum power consumption | 339 W |
| Typical power consumption | 235 W (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules) |
| Maximum heat dissipation | 1157 BTU/hr |
| Typical heat dissipation | 802 BTU/hr (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules) |
