N2K-C2232TF-E Original price was: $5,400.00.Current price is: $5,130.00.
Back to products
CE6850-48S4Q-EI-B Original price was: $10,243.00.Current price is: $9,730.85.

CE6850U-HI-B-B0B

Original price was: $8,536.00.Current price is: $8,109.20.

Model: Huawei CE6850U-24S2Q-HI Switch(24-Port 10GE SFP+,support 2/4/8G FC,2-Port 40GE QSFP+,2*AC Power Module,2*FAN Box,Port-side Intake)
Details: Huawei CE6850U-24S2Q-HI Switch(24-Port 10GE SFP+,support 2/4/8G FC,2-Port 40GE QSFP+,2*AC Power Module,2*FAN Box,Port-side Intake)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: CE6850U-HI-B-B0B Categories: , ,
Description

CE6850U-HI-B-B0B Overview

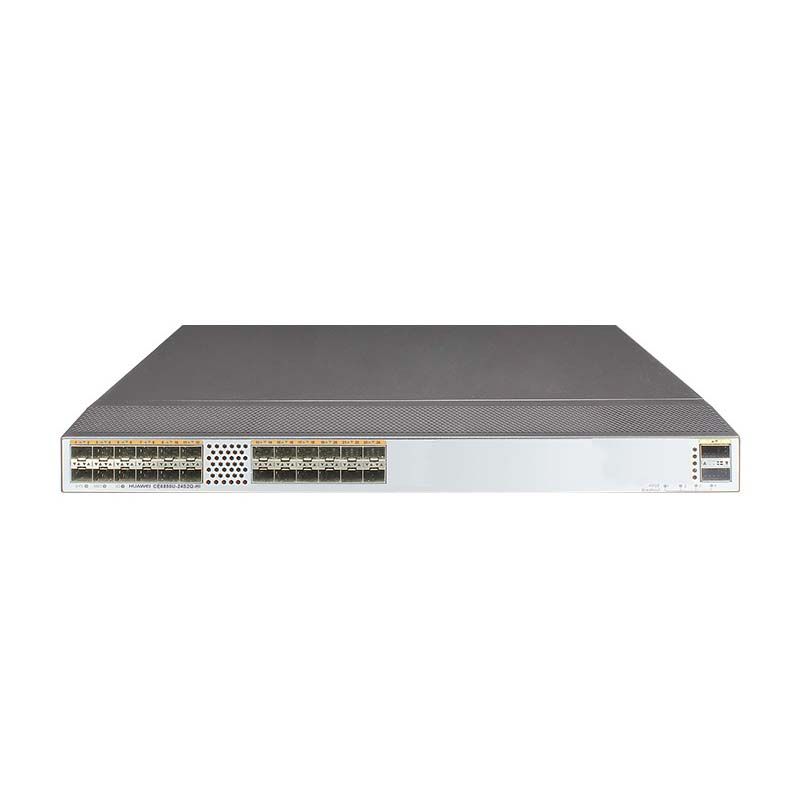

Quick Specs Figure 1 shows the appearance of CE6850U-HI-B-B0B.

Table 1 shows the Quick Specs.

10G Base-T Ports 0
SFP+ Ports 24
FC Ports 24
QSFP+ Ports 2
Switching Capacity 640 Gbit/s
Forwarding Rate 480 Mpps
Airflow Design Front-to-back or back-to-front
Device Virtualization iStack
Network Virtualization M-LAG
VM Awareness Agile Controller
Network Convergence FCoE
Programmability OpenFlow
Traffic Analysis NetStream
VLAN Adding access, trunk, and hybrid interfaces to VLANs
ACL Ingress: 3,750 Egress: 1,000
MAC Address Table Maximum: 288k
ARP (maximum) 128k
IPv4 FIB (maximum) 256k
IP Routing IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
IPv6 FIB (maximum) 128k
IPv6 IPv6 Neighbor Discovery (ND)
Multicast FIB (maximum) 8k
Multicast IGMP, PIM-SM, PIM-DM, MSDP, and MBGP
MPLS MPLS (CE6800HI)
Reliability LACP
QoS Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
Configuration and Maintenance Console, Telnet, and SSH terminals
Security and Management 802.1x authentication
Dimensions (W x D x H) 442 mm x 600 mm x 43.6 mm
Weight (fully loaded) 12.3 kg (27.1 lb)
Environmental Parameters Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m)Storage temperature: -40°C to 70°C (-40°F to 158°F)Relative humidity: 5% RH to 95% RH, non-condensing
Operating Voltage AC: 90V to 290VDC: 240V & 380V
Max. Power Consumption 282W

Get more information
Do you have any question about the CE6850U-HI-B-B0B?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Huawei certified engineer under customers’ permission.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured
