CE6855-48S6Q-HI
Model: CE6855-48S6Q-HI – Huawei Data Center Switches CE 6800 Series
Details: Huawei CE6855-48S6Q-HI Switch (48-Port 10G SFP+, 6-Port 40GE QSFP+, 2*FAN Box, Without Fan and Power Module)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CE6855-48S6Q-HI Overview

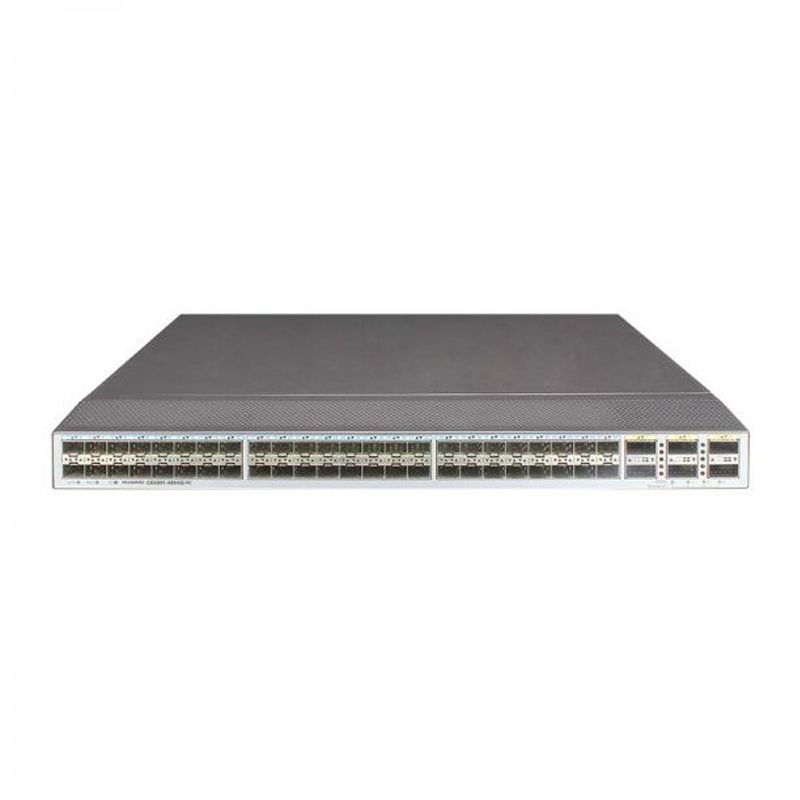

Quick Specs Figure 1 shows the appearance of CE6855-48S6Q-HI.
Table 1 shows the Quick Specs.
| Model | CE6855-48S6Q-HI |
| Power source type | AC/DC |
| Heat dissipation mode | Air cooling |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules |
| Power module backup | 1+1 backup |
| Fan module backup | 1+1 backup not supported |
| Maximum power consumption | 216 W |
| Typical power consumption | 116 W (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules) |
| Maximum heat dissipation | 737 BTU/hr |
| Typical heat dissipation | 396 BTU/hr (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules) |
| Processor | 1.2 GHz, quad-core |
| DRAM Memory | 2 GB |
| NOR Flash | 16 MB |
| NAND Flash | 1 GB |
| Service port supporting the stack function | 10GE optical ports and 40GE optical ports |
