R0X29A
R0X29A Original price was: $21,003.00.Current price is: $19,952.85.
Back to products
CE6863-48S6CQ-F
CE6863-48S6CQ-F Original price was: $9,399.00.Current price is: $8,929.05.

CE6856-HI-F-B0A

Original price was: $4,782.00.Current price is: $4,542.90.

Model: CE6856-HI-F-B0A Switch
Details: Assembly components-CE6800-CE6856-HI-F-B0A-CE6856-48S6Q-HI switch (48*10 Gigabit SFP+, 6*40G QSFP+, 2*AC power supply, port side air outlet)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: CE6856-HI-F-B0A Categories: , , ,
Description

CE6856-HI-F-B0A Overview

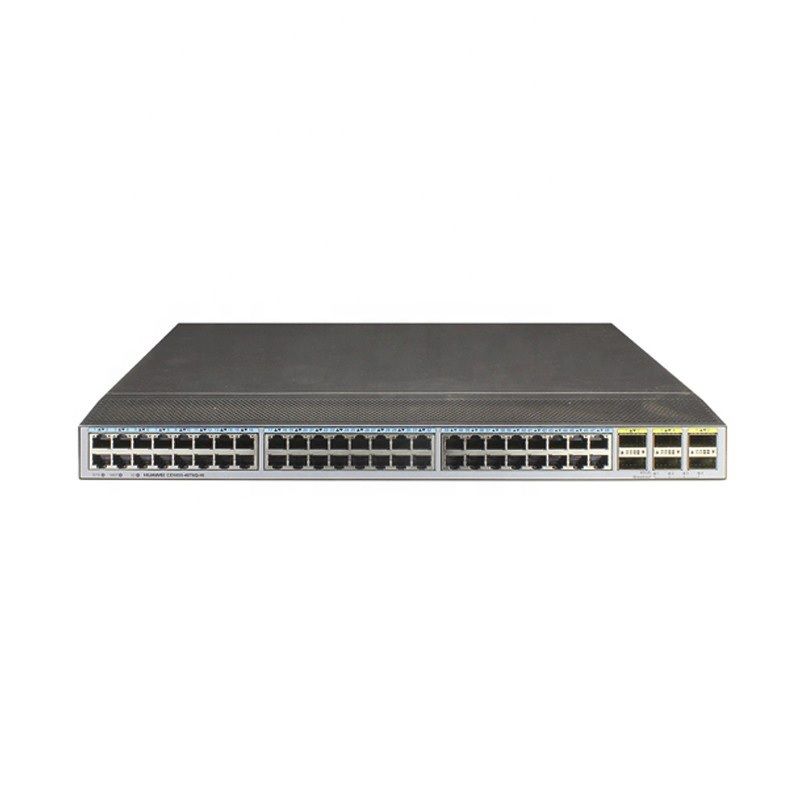

Quick Specs Figure 1 shows the appearance of CE6856-HI-F-B0A.

Table 1 shows the Quick Specs.

Item Description
Physical specifications Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
Environment parameters Temperature
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C) Back-to-front airflow: < 56 dBAFront-to-back airflow: < 58 dBA
Power specifications Power source type
AC power input Rated input voltage range: 100 V AC to 240 V AC, 50/60 HzMaximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input Rated voltage range: -48 V DC to -60 V DCMaximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input Not supported
Rated input current 350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
Chassis power consumption Maximum power consumption
Typical power consumption 116 W (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Chassis heat dissipation Maximum heat dissipation
Typical heat dissipation 396 BTU/hr (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Surge protection Power module:AC: 6 kV in common mode and 6 kV in differential modeDC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation Heat dissipation mode
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability Power module backup
Fan module backup 1+1 backup not supportedNOTE:A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 48.83 years
Mean time to repair (MTTR) 1.73 hours
Availability 0.99999595166
Technical specifications Processor
DRAM Memory 4 GB
NOR Flash 16 MB
NAND Flash 1 GB
Stack Service port supporting the stack function
Certification Safety standards complianceEMC standards complianceEnvironmental standards compliance
