CE6881-48S6CQ-F

Original price was: $6,164.00.Current price is: $5,855.80.

Model: CE6881-48S6CQ-F Switch
Details: CE6881-48S6CQ-F switch (48*10 Gigabit SFP+, 6*100G QSFP28, 2*AC power supply, port side air outlet)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: CE6881-48S6CQ-F Categories: , , ,
Description

CE6881-48S6CQ-F Overview

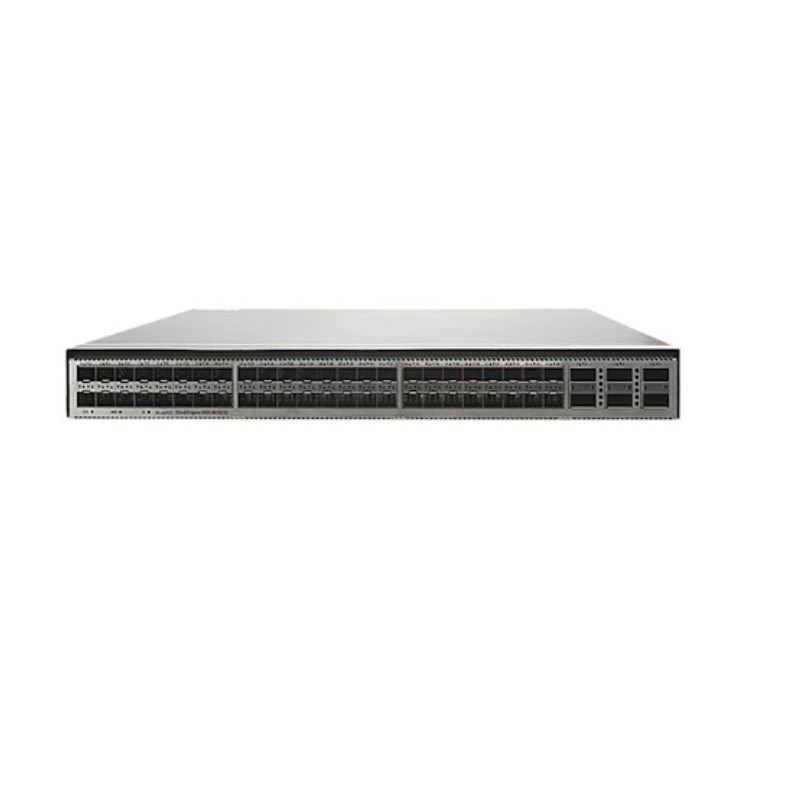

Quick Specs Figure 1 shows the appearance of CE6881-48S6CQ-F.

Table 1 shows the Quick Specs.

Item Description
Physical specifications Dimensions (H x W x D)Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.4 in. x 17.6 in.)
Environment parameters Temperature
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C) Back-to-front airflow: < 57 dBAFront-to-back airflow: < 58 dBA
Power specifications Power source type
AC power input Rated input voltage range: 100 V AC to 240 V AC, 50/60 HzMaximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input Rated voltage range: -48 V DC to -60 V DCMaximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input 600 W AC&240 V DC power module (PAC600S12 series):Rated voltage range: 240 V DCMaximum voltage range: 190 V DC to 290 V DC1200 W high-voltage DC power module (PHD1K2S12 series):Rated voltage range: 240 V DC to 380V DCMaximum voltage range: 190 V DC to 400 V DC
Rated input current 600 W AC&240 V DC power module (PAC600S12 series):8 A (100 V AC to 240 V AC)4 A (240V DC)1000 W DC power module (PDC1000S12 series): 30 A (-48 V DC to -60 V DC)1200 W high-voltage DC power module (PHD1K2S12 series): 8 A
Chassis power consumption Maximum power consumption
Typical power consumption 194 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules)240 W (100% throughput, short-distance optical modules on all optical ports, double power modules)
Chassis heat dissipation Maximum heat dissipation
Typical heat dissipation 662 BTU/hr (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules)819 BTU/hr (100% throughput, short-distance optical modules on all optical ports, double power modules)
Surge protection Power module:AC: 6 kV in common mode and 6 kV in differential modeDC: 4 kV in common mode and 2 kV in differential modeHVDC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation Heat dissipation mode
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability Power module backup
Fan module backup The device supports four pluggable fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 45.9 years
Mean time to repair (MTTR) 1.57 hours
Availability 0.9999960856
Technical specifications Processor
DRAM memory 4 GB
NOR Flash 64 MB
NAND Flash 4 GB
Stack Service port supporting the stacking function
Certification Safety standards complianceEMC standards complianceEnvironmental standards compliance
