CE7850-32Q-EI-B
Model: Huawei CE7850-32Q-EI Switch (32-Port 40G QSFP+,2*FAN Box,Port-side Intake,Without Power Module)
Details: Huawei CE7850-32Q-EI Switch (32-Port 40G QSFP+,2*FAN Box,Port-side Intake,Without Power Module)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CE7850-32Q-EI-B Overview

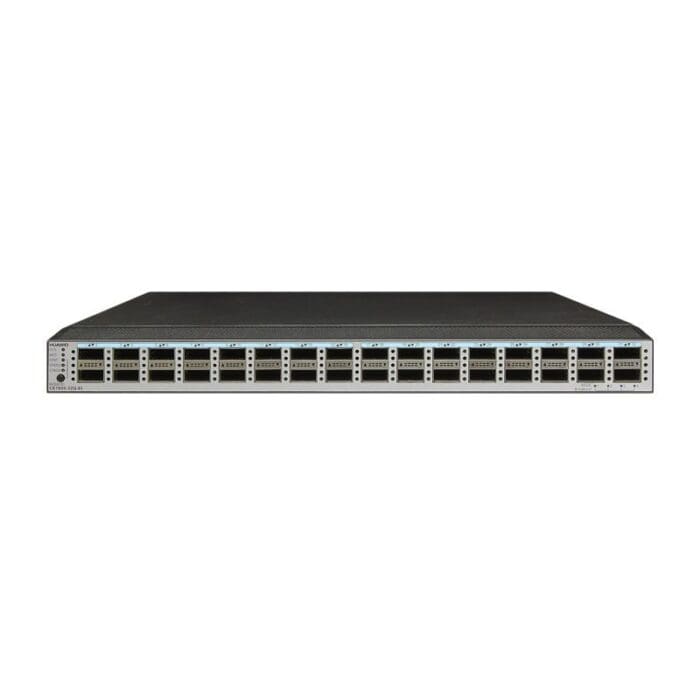

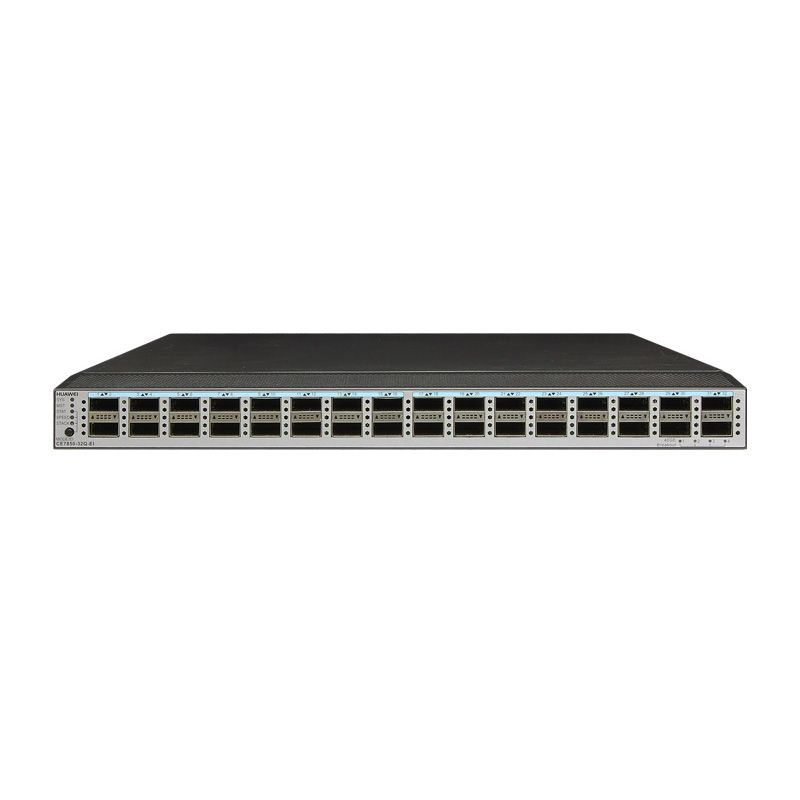

Quick Specs Figure 1 shows the appearance of CE7850-32Q-EI-B.
Table 1 shows the Quick Specs.
| Ports | 32 x 40 GE QSFP+ |
| Switching Capacity | 2.56 Tbit/s |
| Forwarding Performance | 1,440 Mpps |
| Airflow Design | Front-to-back or back-to-front |
| Device Virtualization | iStack |
| Network Virtualization | TRILL |
| SDN | Agile Controller |
| Network Convergence | FCoE |
| Programmability | OPS |
| Traffic Analysis | NetStream |
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
| ACL | Ingress: 3,750; Egress: 1,000 |
| MAC Address Table | Maximum: 288k |
| ARP | Maximum: 128k |
| ND | Maximum: 48k |
| IPv4 FIB | Maximum: 256k |
| IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
| IPv6 FIB | Maximum: 128k |
| IPv6 | IPv6 Neighbor Discovery (ND) |
| Multicast FIB | Maximum: 8k |
| Multicast | IGMP, PIM-SM, PIM-DM, MSDP, and MBGP |
| MPLS | MPLS |
| Reliability | LACP |
| QoS | Traffic classification based on L2 headers, L3 protocols, L4 protocols, and 802.1p priority |
| Configuration and Maintenance | Console, Telnet, and SSH terminals |
| Security and Management | 802.1x authentication |
| Dimensions (W x D x H) | 17.4 in. x 23.9 in. x 1.7 in. (442 mm x 607 mm x 43.6 mm) |
| Weight (fully loaded) | 11.2 kg (24.7 lb) |
| Environment Parameters | Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m)Storage temperature: -40°C to 70°C (-40°F to 158°F)Relative humidity: 5% RH to 95% RH, non-condensing |
| Operating Voltage | 90V AC to 290V AC |
| Maximum Power Consumption | 431W |
