CFP-40G-SR4=
Model: CFP-40G-SR4= – Cisco 40 Gigabit Optical Modules
Details: 40GBASE-SR4 CFP Module with MPO connector
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CFP-40G-SR4= Overview

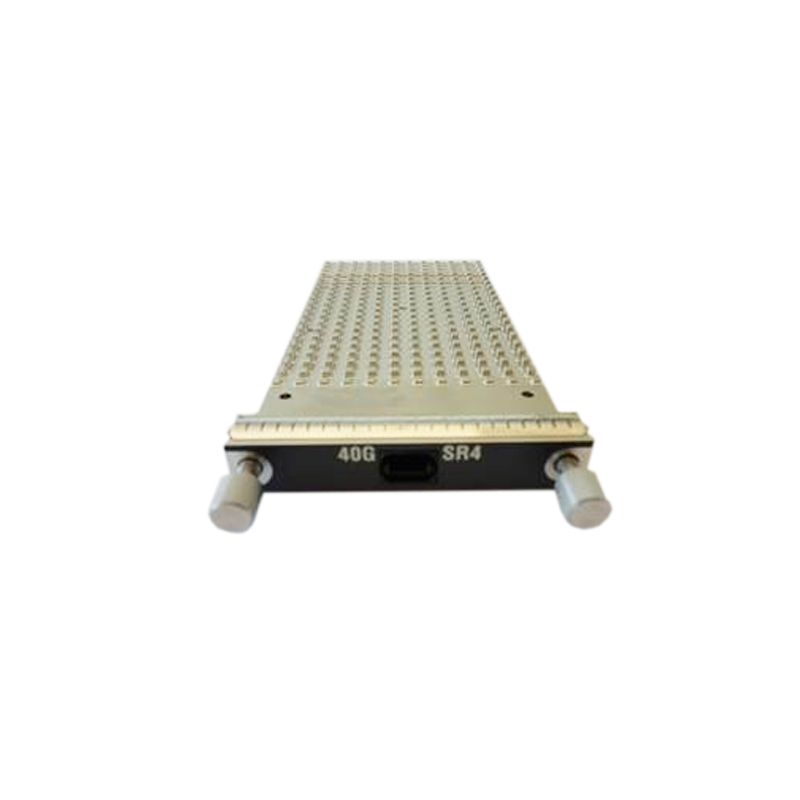

Quick Specs Figure 1 shows the appearance of CFP-40G-SR4=.
Table 1 shows the Quick Specs.
| Description | Cisco 40GBASE-SR4 CFP Module for MMF |
| Dimensions | 144.8 x 82 x 13.6 mm |
| Wavelength (nm) | 850 |
| Cable Type | Multimode fiber (MMF) |
| Core Size (microns) | 50.050.050.0 |
| Modal Bandwidth (MHz-km) | 500 (OM2)2000 (OM3)4700 (OM4) |
| Cable Distance | 30m100m150m |
| Type | 40GBASE-SR4, 4 lanes, 850 nm MMF |
| Transmit Power (dBm)* | Max:2.4 per laneMin:-7.6 per lane |
| Receive Power (dBm)* | Max:2.4 per laneMin:-9.5 per lane |
| Transmit and Receive Wavelength (nm) | 840 to 860 |
| Operating temperature | 0 to 70°C (32 to 158°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
| Power consumption | up to 8W per 40G CFP port |
