CFP2-100G-LR4
Model: Huawei CFP2-100G-LR4 Optical Transceiver
Details: High Speed Transceiver,CFP2,100G,Single-mode Module(1310nm band,4*25G,10km,stright LC)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CFP2-100G-LR4 Overview

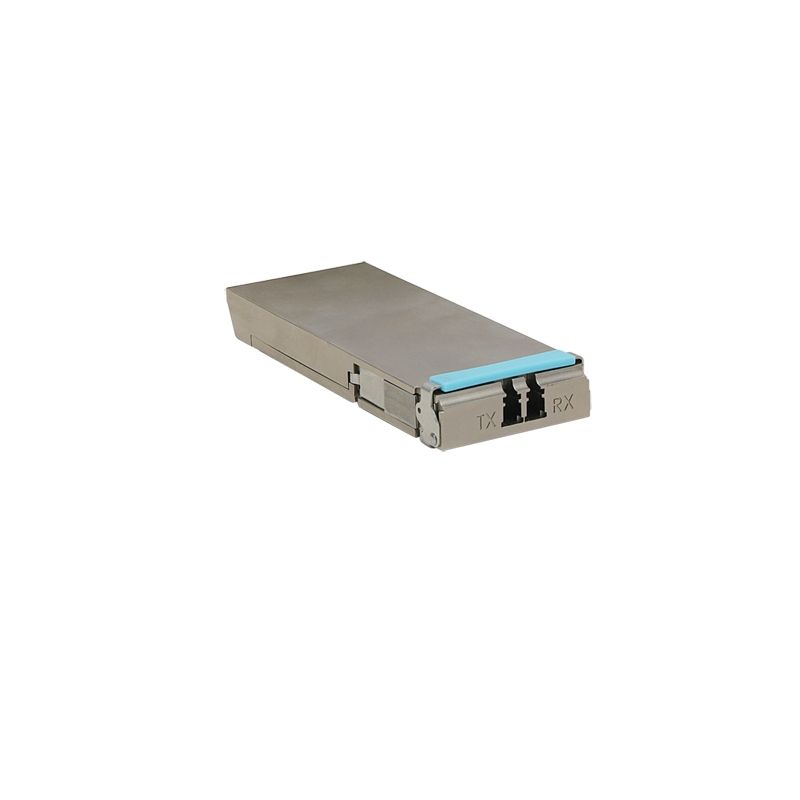

Quick Specs Figure 1 shows the appearance of CFP2-100G-LR4.
Table 1 shows the Quick Specs.
| Product Brand | Huawei |
| Product Model | CFP2-100G-LR4 |
| Product Type | High Speed Transceiver |
| Transceiver form factor | CFP2 |
| Transmission speed | 100GE |
| Supported Fiber Type | Single-mode |
| Center wavelength | 1310nm band |
| Transmission Mode | 4*25G |
| Type of the end face of the fiber ceramic ferrule | PC or UPC |
| Connector Type | LC |
| Applicable cable and maximum transmission distance | Single-mode fiber (G.652) (with diameter of 9 μm): 40 km |
| Transmit power (dBm) | -2.9 to +2.9 |
| Maximum receiver sensitivity (dBm) | -21.4 |
| Overload power (dBm) | 4.5 |
| Operating temperature | 0°C to 70°C |
