CFP2-100G-SR10
Model: Huawei CFP2-100G-SR10 Optical Transceiver
Details: High Speed Transceiver,CFP2,100G,Multimode Module(850nm,10*10G,0.1km,MPO)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CFP2-100G-SR10 Overview

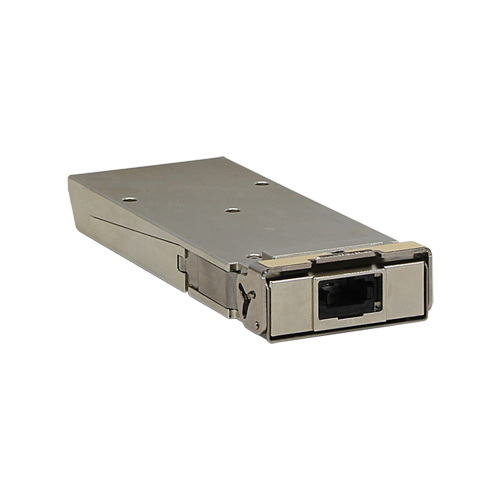

Quick Specs Figure 1 shows the appearance of CFP2-100G-SR10.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | CFP2-100G-SR10 |
| Transceiver Type | CFP2 |
| Data Rate | 100 Gbps |
| Wavelength | 850 nm |
| Transmission Distance | 0.1 km |
| Interface | MPO |
| Number of Channels | 10×10 Gbps |
| Form Factor | Plug-in module |
| Connector Type | MPO |
| Fiber Type | Multimode |
| Tx Power | -4.3 dBm to +4.5 dBm |
| Rx Sensitivity | -11.1 dBm |
| Operating Temperature | 0°C to 70°C |
| Max Power Consumption | 24 W |
| Damping Loss | 8 dB |
| Modulation Type | PAM4 |
| EMI/EMC Compliance | FCC Part 15 |
| Management Interface | MDIO Interface |
| Compliance | IEEE 802.3ba |
| Hot-Pluggable | Yes |
| MTBF | 2 million hours |
