CISCO1921-ADSL2/K9
Model: CISCO1921-ADSL2/K9 Cisco 1921 Router ISR G2
Details: Cisco 1921 ADSL2+ Bundle, HWIC-1ADSL, 256F/512D, IP Base Lic
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CISCO1921-ADSL2/K9 Overview

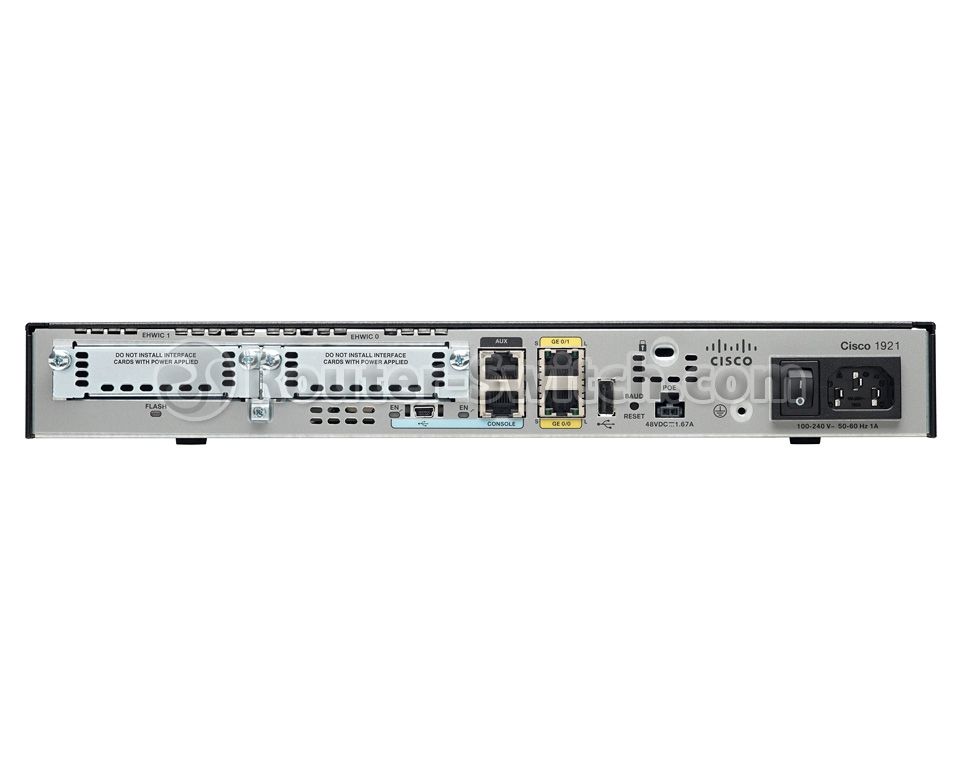

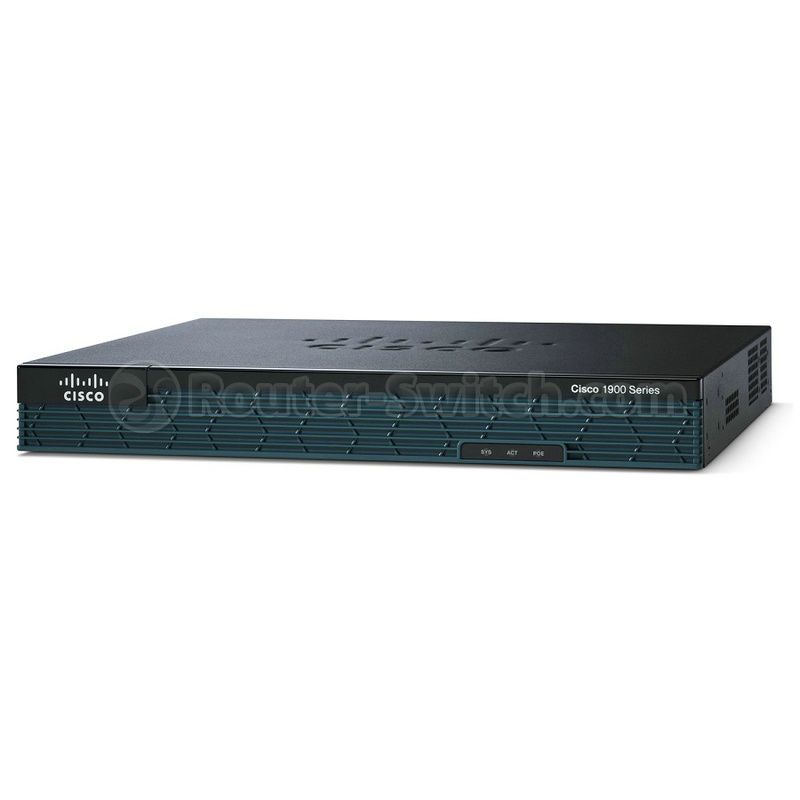

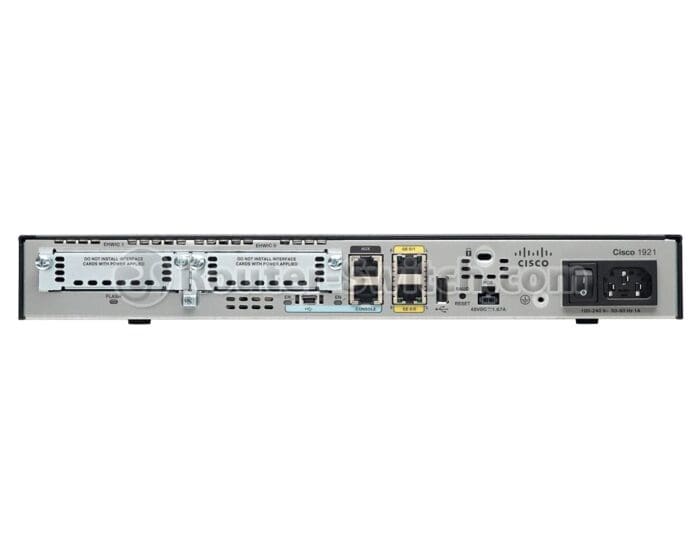

Quick Specs Figure 1 shows the appearance of CISCO1921-ADSL2/K9.
Table 1 shows the Quick Specs.
| Device Type: | Router |
| Enclosure Type: | Desktop, modular, 1U |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol: | L2TP, IPSec |
| Routing Protocol: | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Remote Management Protocol: | SNMP, RMON |
| Features: | Firewall protection, VPN support, MPLS support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS) |
| Compliant Standards: | VCCI, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1 |
| RAM: | 512 MB (installed) / 512 MB (max) |
| Flash Memory: | 256 MB (installed) / 256 MB (max) |
| Type: | DSL modem |
| Digital Signaling Protocol: | ADSL, ADSL2, ADSL2+ |
| Protocols & Specifications: | ITU G.992.1 (G.DMT), ITU G.992.3 (G.DMT.bis), ITU G.992.5 |
| Max Transfer Rate: | 24 Mbps |
| Interfaces: | 2 x 10Base-T/100Base-TX/1000Base-T, RJ-45, Serial : 1 x console , Management : 1 x console, mini-USB Type B , Serial : 1 x auxiliary , Hi-Speed USB : 1 x 4 pin USB Type A , WAN : 1 x ADSL2+, RJ-11 |
| Expansion Slot(s): | 2 (total) / 1 (free) x EHWIC |
| Power Device: | Power supply, internal |
| Voltage Required: | AC 120/230 V ( 50/60 Hz ) |
| Width: | 13.5 in |
| Depth: | 11.5 in |
| Height: | 1.7 in |
| OS Provided: | Cisco IOS IP Base |
| Service & Support: | 1 year warranty |
| Service & Support Details: | Limited warranty, 1 year |
| Min Operating Temperature: | 32 °F |
| Max Operating Temperature: | 104 °F |
| Humidity Range Operating: | 10, 85% |
