CISCO1941W-P/K9
Model: CISCO1941W-P/K9 Cisco Router ISR G2 Wireless Bundle
Details: Cisco 1941 Router w/ 802.11 a/b/g/n Japan Compliant WLAN ISM
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CISCO1941W-P/K9 Overview

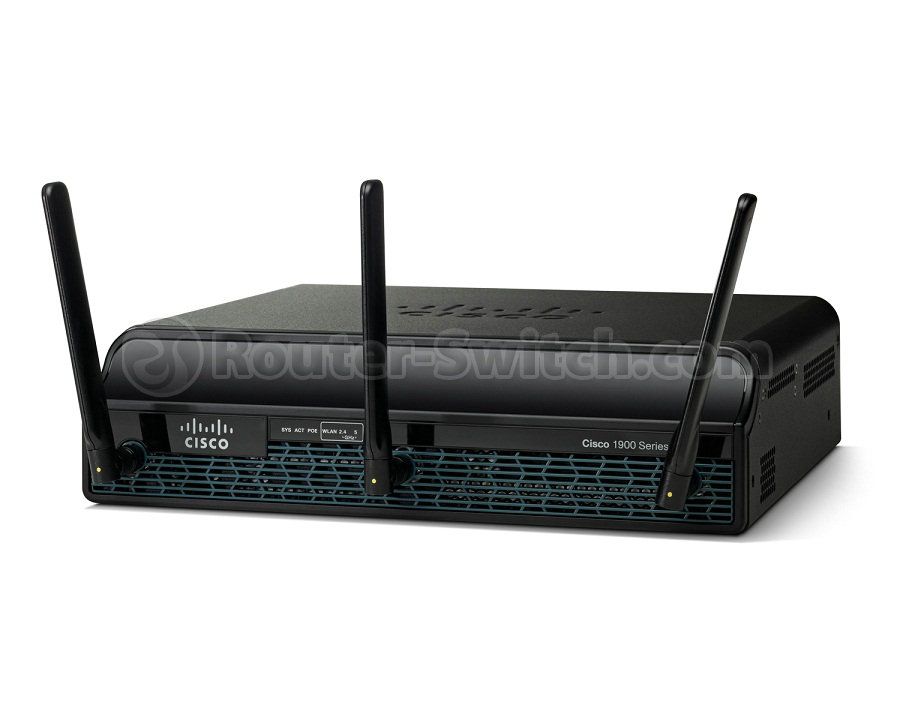

Quick Specs Figure 1 shows the appearance of CISCO1941W-P/K9.
Table 1 shows the Quick Specs.
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CISCO1941W-P/K9 |
| Compliant WLAN ISM | Japan Compliant WLAN ISM |
| Product Type | Wireless router |
| Form Factor | Desktop – modular – 2U |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a,IEEE 802.11g, IEEE 802.11n (draft 2.0) |
| Network / Transport Protocol | IPSec, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE,PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR),MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast |
| Remote Management Protocol | SNMP, RMON, TR-069 |
| Encryption Algorithm | LEAP, MD5, TLS, PEAP, TKIP, WPA, WPA2 |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP), EAP-FAST |
| Features | Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support,Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Web Services Management Agent (WSMA), NetFlow |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950-1, VCCI V-3, EN 61000, TIA/EIA/IS-968 |
| DRAM Memory | 512 MB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| LED Status Lights Indicators | Link activity, power |
| Router Interfaces | 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45Management : 1 x console – RJ-45Management : 1 x console – mini-USB Type BSerial : 1 x auxiliary – RJ-45USB : 2 x 4 PIN USB Type A |
| Expansion Slot(s) | 2 (total) / 2 (free) x HWIC2 (total) / 1 (free) x CompactFlash Card1 (total) / 1 (free) x Expansion Slot |
| Aerial | External detachable |
| Antenna Qty | 3 |
| Directivity | Omni-directional |
| Gain Level | 2 dBi |
| Power Device | Power supply – internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Width | 34.3 cm |
| Depth | 29.2 cm |
| Height | 8.9 cm |
| Weight | 5.8 kg |
| IOS Software Included | Cisco IOS IP Base |
