Sold out
CPAK-10X10G-LR=
Model: CPAK-10X10G-LR= – Cisco 100 Gigabit Optical Modules
Details: CPAK-10X10GLR, Transceiver module, 10 x 10Gb/s 10km SMF
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
CPAK-10X10G-LR= Overview

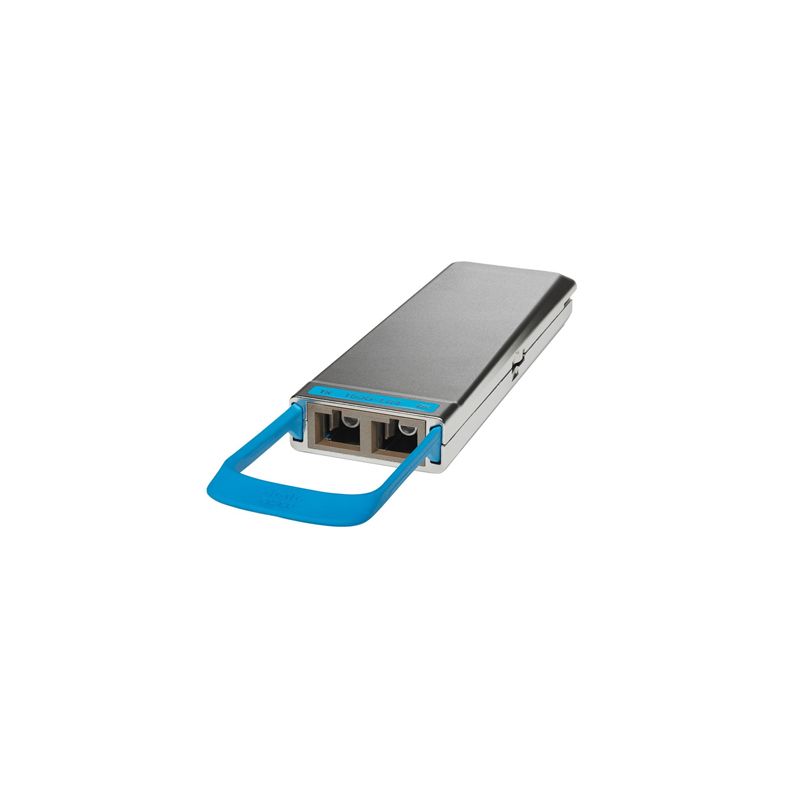

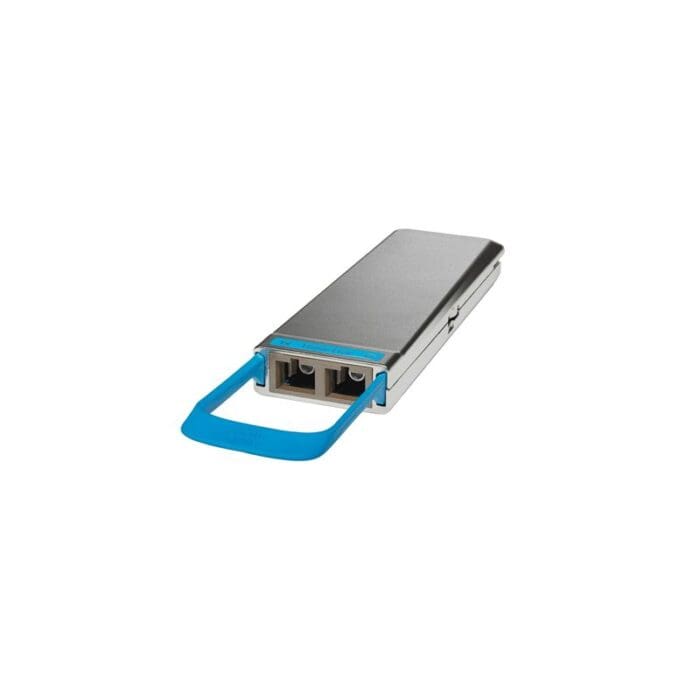

Quick Specs Figure 1 shows the appearance of CPAK-10X10G-LR=.
Table 1 shows the Quick Specs.
| Description | 10x10G-LR Cisco CPAK Module for SMF |
| Dimensions | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
| Wavelength (nm) | 1310 |
| Cable Type | SMF (24 fibers) |
| Core Size (Microns) | 9-micron core SMF per G.652 |
| Modal Bandwidth (MHz*km) | |
| Cable Distance | 10 km |
| Type | 1310 nm SMF |
| Transmit Power | Max:+0.5 per laneMin:-8.2Â per lane |
| Receive Power (dBm) | Max:+0.5 per laneMin:-14.4Â per lane |
| Transmit and Receive Center Wavelength Range (nm) | Ten lanes 1260 to 1355 nm |
| Supported Mode | 10x10G |
| Supported Protocol | IEEE 802.3aeFCITU OTU2ITU OTU1eITU OTU2e |
| Storage temperature | -40 to 85°C(-40 to 185°F) |
| Operating temperature | 0 to 70°C (32 to 158°F) |
| Power consumption | At 70°C: <5.0W maximum |
