-5%
CR2M0DPUDC10
Model: Huawei Power Distribution Unit CR2M0DPUDC10
Details: NE20E-S4/S8 DC Power Distribution Unit
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CR2M0DPUDC10 Overview

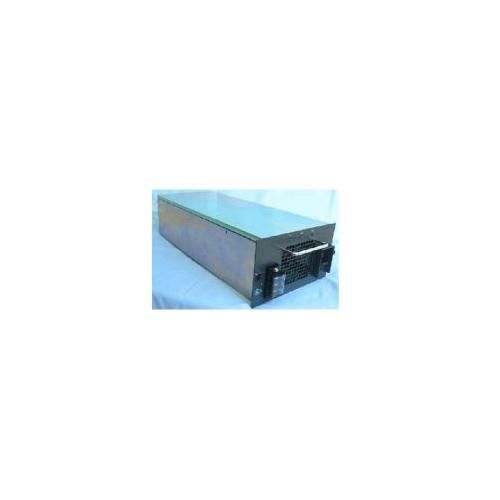

Quick Specs Figure 1 shows the appearance of CR2M0DPUDC10.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Name | NE20E-S4/S8 DC Power Distribution Unit |
| Model | CR2M0DPUDC10 |
| Power Input Voltage | -48V DC or -60V DC |
| Power Output Voltage | -48V DC |
| Maximum Output Current | 10A per channel |
| Number of Output Channels | 8 |
| Maximum Input Current | 100A |
| Operating Temperature Range | -40°C to +70°C |
| Relative Humidity Range | 5% to 95% (non-condensing) |
| Cooling Method | Natural Convection |
| Dimensions (H x W x D) | 44.45 mm x 426 mm x 350 mm |
| Mounting | 19-inch rack mountable |
| Protection Features | Over-current protection, Short-circuit protection |
| Compliance | CE, RoHS, UL |
| Indicator Lights | Power, Alarm, Status |
| Alarm Types | Over-temperature, Over-current, Power failure |
| MTBF (Mean Time Between Failures) | 500,000 hours |
| Warranty | 5 years |
| Usage | Telecom, Data Centers |
| Color | Black |
