CR5D00P1MZ60
Model: Huawei NetEngine5000E Cluster Routers Flexible Card CR5D00P1MZ60
Details: 1-Port OC-768c/STM-256c POS-2KM-LC Flexible Card(CP100,Occupy 2 sub-slots)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CR5D00P1MZ60 Overview

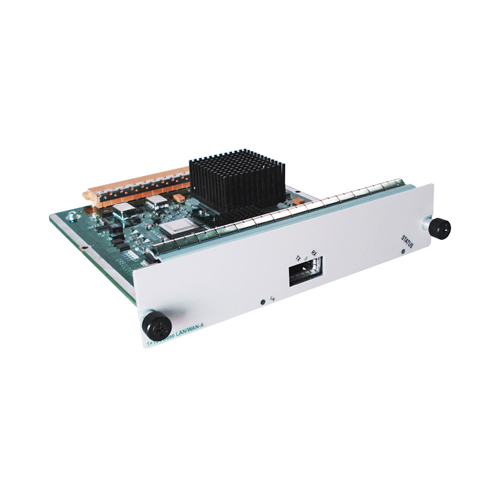

Quick Specs Figure 1 shows the appearance of CR5D00P1MZ60.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | CR5D00P1MZ60 |
| Interface | 1-Port OC-768c/STM-256c POS |
| Maximum Distance | 2 KM |
| Connector Type | LC |
| Compatibility | CP100 |
| Sub-Slot Requirement | Occupy 2 sub-slots |
| Type | Flexible Card |
| Port Count | 1 Port |
| Form Factor | Plug-in module |
| Data Rate | 39.813 Gbps |
| Power Consumption | Less than 70W |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (HxWxD) | 36.8 mm x 236 mm x 206.5 mm |
| Regulatory Compliance | CE, FCC, VCCI, BSMI |
| MTBF | 500,000 hours |
| Interface Speed | OC-768c/STM-256c |
| Wavelength | 1310 nm |
