CSFP-GE-FE-BIDI2
Model: Huawei CSFP-GE-FE-BIDI2 CSFP Optical Transceiver
Details: 100/1000BASE-BX CSFP Optical Transceiver,CSFP,GE/FE,Single-mode Module(Tx1490/Rx1310nm,20km,LC)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CSFP-GE-FE-BIDI2 Overview

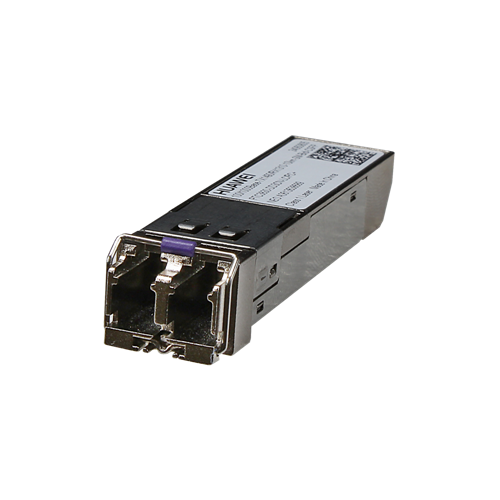

Quick Specs Figure 1 shows the appearance of CSFP-GE-FE-BIDI2.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model Name | CSFP-GE-FE-BIDI2 |
| Form Factor | CSFP |
| Data Rate | 100/1000BASE-BX |
| Optical Components | Tx1490/Rx1310nm |
| Maximum Distance | 20 km |
| Connector Type | LC |
| Mode | Single-mode |
| Interface | GE/FE |
| Wavelength Transmission | 1490 nm |
| Wavelength Reception | 1310 nm |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply | 3.3V |
| Power Consumption | < 1.2W |
| Regulatory Compliance | CE, RoHS, FCC |
| Digital Diagnostic Monitoring (DDM) | Yes |
| Compatibility | MSA Compliant |
| Hot Swappable | Yes |
| MTBF | 5,000,000 hours |
| Application | Ethernet, Fiber Channel |
