CWDM-SFPGE-1531
Model: Huawei CWDM-SFPGE-1531 CWDM Optical Transceiver
Details: CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1531nm,80km,LC)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
CWDM-SFPGE-1531 Overview

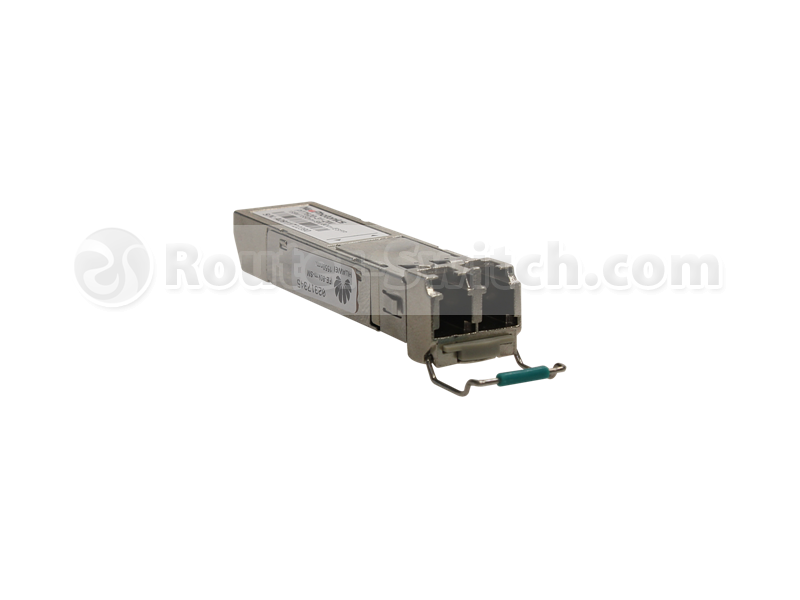

Quick Specs Figure 1 shows the appearance of CWDM-SFPGE-1531.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | CWDM-SFPGE-1531 |
| Optical Wavelength | 1531nm |
| Form Factor | eSFP |
| Data Transfer Rate | 2.5G |
| Cable Type | Single-mode |
| Reach | 80km |
| Output Power | -5~0dBm |
| Recieve Sensitivity | -22dBm |
| Connector | LC |
| DDM/DOM | Yes |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Fiber Type | G.652 |
| Protocol | Compliance |
| Power Consumption | <1.5W |
| Compatible Brands | Huawei |
| EMI Emissions | FCC Class B |
| RoHS Compliance | Yes |
| MTBF | 1,000,000 hours |
| Safety Standard | CE, FDA, and TUV |
| Diagnostic Monitoring | Supported |
