DEC6001-E
Model: Huawei High Definition Decoder DEC6001-E
Details: Huawei eSpace DEC6001-E 1-channel 1080P@60fps High Definition Decoder
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DEC6001-E Overview

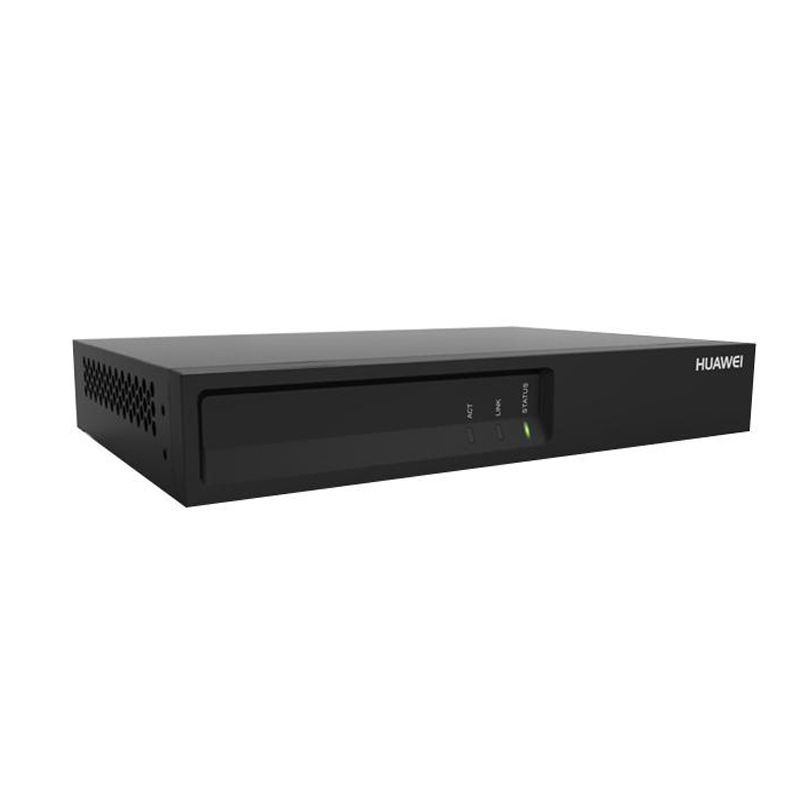

Quick Specs Figure 1 shows the appearance of DEC6001-E.
Table 1 shows the Quick Specs.
| Video output through HDMI | 1- or 4-channel video output through the HDMI port;Resolution: 1080p @ 60 Hz, 50 Hz, or 30 Hz, 1080I @ 60 Hz or 50 Hz, 720p @ 60 Hz or 50 Hz, XGA @ 60 Hz, and SXGA @ 60 Hz |
| Video output through VGA | 1- or 4-channel video output through the VGA port;Resolution: 1080p @ 60 Hz, 720p @ 60 Hz, Extended Graphics Array (XGA) @ 60 Hz, and Super Extended Graphics Array (SXGA) @ 60 Hz |
| Video output through BNC | 1-channel video output through the BNC port;Resolution:720 x 576 for the Phase Alternating Line (PAL) standard, 720 x 480 for the National Television System Committee (NTSC) standard |
| Audio output | 1-channel audio output through the BNC or HDMI port |
| Video standardVideo decoding resolution | H.264 High Profile、MJPEG1080P、720P、D1-PAL、D1-NTSC、4CIF、CIF、VGA |
| Video decoding capacity | 1-channel 1080P@60fps or 1-channel 1080P@30fps+1- channel D1 or 2-channel 720P(BNC closed) or 8-channel D1(BNC closed) |
| Screen division | 1 or 4 |
| Network protocol | TCP/IP，HTTP，HTTPS，RTP/RTCP |
| User role | Three options: Super user, Administrator, Common user |
| Browser External access | Internet Explorer 8 (32-bit Windows XP SP1 or later) SDK secondary development |
| Common Product Appearance | One-button reset, heartbeat mechanism, stream encryption,and digital watermark |
| Network port | One RJ45 10/100 Mbit/s auto-negotiation Ethernet port |
| Serial port | One standard RS-485 serial port, One standard RS-232 serial port |
| Power supplyPower consumption | 12VDC8.5W |
| Operating temperature & humidity | Operating temperature:–5ºC to +50ºC, Storage temperature:–20ºC to +60ºC; < 90% relative humidity (noncondensing) |
| Net weight | 1100g |
| Physical Product Appearances | 241.1mm×178.2mm×40.2mm |
| Fittings | Bracket Holder ACC8501H (A maximum of eight HD decoders can be inserted. Physical Product Appearances: 442mm×242mm×308mm) |
