Dell 2U R740 4210R/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8
Model: Dell PowerEdge R740 Servers
Details: Dell 2U R740 4210R (10 Core, 20 Thread, 2.4 GHz, 13.75MB)/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Dell 2U R740 4210R/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8 Overview

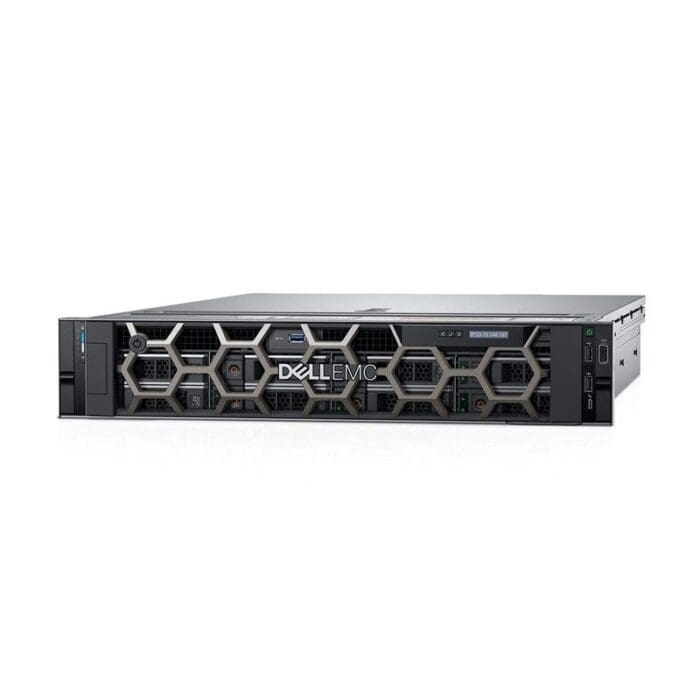

Quick Specs Figure 1 shows the appearance of Dell 2U R740 4210R/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8.
Table 1 shows the Quick Specs.
| Processor | Up to two Intel Xeon Scalable processors, up to 28 cores per processor |
| Memory | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB maxUp to 12 NVDIMM, 192 GB MaxSupports registered ECC DDR4 DIMMs only |
| Storage controllers | Internal controllers: PERC H330, H730p, H740p, Software RAID (SWRAID) S140Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GBExternal PERC (RAID): H84012Gbps SAS HBAs (non-RAID): External- 12 Gbps SAS HBA (non-RAID), Internal- HBA330 (non-RAID) |
| Drive bays | Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 61TB or up to 8 x 3.5” SAS/SATA HDD max 96TBOptional DVD-ROM, DVD+RW |
| Power supplies | Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan)Hot plug power supplies with full redundancyUp to 6 hot plugs fans with full redundancy |
| Dimensions | Form factor: Rack (2U)Max depth: 715.5 mm |
| Embedded management | IPMI 2.0 compliantiDRAC9 with Lifecycle Controller (Express, Enterprise)Quick Sync 2 wireless module optional |
| Bezel | Optional LCD Bezel or Security bezel |
| OpenManage™ Software | OpenManage EnterpriseOpenManage EssentialsOpenManage MobileOpenManage Power Center |
| Integrations and connections | Integrations: Microsoft System Center, VMware vCenter, BMC SoftwareConnections: Nagios & Nagios XI, Oracle Enterprise Manager,HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli Network Manager, CA Network and Systems Management |
| Security | TPM 1.2/2.0 optional Cryptographically signed firmware Secure BootSystem LockdownSecure erase |
| I/O & Ports | Network daughter card options4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GEFront ports: Video, 2 x USB 2.0, available USB 3.0, dedicated IDRAC Direct Micro-USBRear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network portVideo card: VGARiser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots |
| Accelerator options | Up to three 300W or six 150W GPUs,or up to four FPGAs.Nvidia Tesla P100, K80, K40, Grid M60, M10,P4, Quadro P4000, NVIDIA V100,or Intel Arria® 10GX FPGA |
| Supported operating systems | Canonical Ubuntu LTSCitrix XenServerMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi |
