Dell PowerEdge R230 Xeon E3-1220 v5 8GB 500GB SATA Rack Server
Model: pe_r230_1346_a
Details: Customizable: Intel® Xeon® E3-1220 v5, Optional Operating System, 8GB Memory, 500GB SATA Hard Drive and a 3 Year Warranty
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Dell PowerEdge R230 Xeon E3-1220 v5 8GB 500GB SATA Rack Server Overview

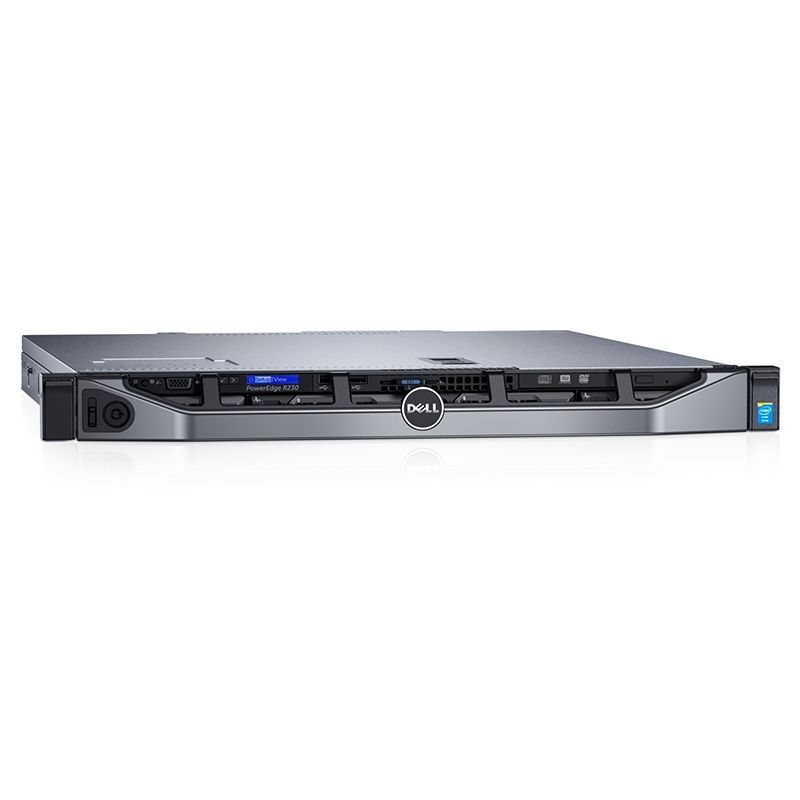

Quick Specs Figure 1 shows the appearance of Dell PowerEdge R230 Xeon E3-1220 v5 8GB 500GB SATA Rack Server.
Table 1 shows the Quick Specs.
| Product Series | Dell PowerEdge R230 Server |
| Model | Dell PowerEdge R230 Xeon E3-1220 v5 8GB 500GB SATA Rack Server |
| Customizable | Intel® Xeon® E3-1220 v5, Optional Operating System, 8GB Memory, 500GB SATA Hard Drive and a 3 Year Warranty |
| Base | PowerEdge R230 Server |
| Processor | Intel® Xeon® E3-1220 v5 3.0GHz, 8M cache, 4C/4T, turbo (80W) |
| Operating System | No Operating System |
| Memory | 8GB (1x8GB) 2400MT/s DDR4 ECC UDIMM |
| Hard Drive | 500GB 7.2k RPM SATA 6Gbps Entry 3.5in Cabled Hard Drive |
| Warranty | 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site |
| Chipset | Intel C236 |
| Embedded Hypervisor (Optional) | Hypervisor SupportMicrosoft Windows Server with Hyper-V®VMware® vSphere® ESXi® |
| Storage | 2.5” SATA 7.2K2.5” nearline SAS 7.2K2.5” 10K SAS HDDs2.5” 15K SAS HDDs2.5” SATA HDDs3.5” Enterprise SATA 7.2K HDDs3.5” nearline SAS 7.2K HDDs3.5” 7.2K SATA entry drives |
| Drive Bays | 2 x 3.5″ cabled HDD4 x 3.5″ cabled HDD4 x 3.5″ hot swap or 2.5″ hot swap in hybrid drive carrier |
| Slots | 2 x PCIe 3.0 slots: x16 slot, full height (1×8 PCIe 3.0)+ x8 slot, low profile (1×4 PCIe 3.0) |
| RAID Controllers | S130, H330, H730, H830 |
| Network Controller | Broadcom® BCM5720 |
| Communications | 2 x 1GbE LOM |
| Power | 250W cabled PSU |
| Chassis | 2 x 3.5″ cabled HDD 19.5″ 1U chassis4 x 3.5″ cabled HDD 19.5″ 1U chassis4 x 3.5″ Hot-Plug HDD 19.5″ 1U chassis |
| Management | Systems management:IPMI 2.0 compliantDell OpenManage EssentialsDell OpenManage MobileDell OpenManage Power CenterDell OpenManage Integrations:Dell OpenManage Integration Suite for Microsoft System CenterDell OpenManage Integration for VMware vCenter™Dell OpenManage Connections:HP Operations Manager, IBM Tivoli® Netcool® and CANetwork and Systems ManagementDell OpenManage Plug-in for Oracle® Database ManagerRemote management:iDRAC8 with Lifecycle Controller, iDRAC8 Express (default),iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade),16GB vFlash media (upgrade) |
| Device Access | 5 Total USB:Rear: 2 x USB 3.0 portsFront: 2 x USB 2.0 portsInternal: 1 x USB 3.0 port |
| Rack Support | ReadyRails™ static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post racks. |
| Dimensions | Depth without bezel: 495.0 mm (19.5 in)Depth with bezel: 551.3 mm (21.7 in)Height: 42.8 mm (1.68 in)Width without rack latches: 434.0 mm (17.08 in)Width with rack latches: 482.4 mm (18.99 in) |
