Dell PowerEdge R330 Xeon E3-1220 v6 8GB 1TB SATA Rack Server
Model: pe_r330_1065_a
Details: Customizable: Intel® Xeon® E3-1220 v6, Optional Operating System, 8GB Memory, 1TB Hard Drive and a 3 Year Warranty
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Dell PowerEdge R330 Xeon E3-1220 v6 8GB 1TB SATA Rack Server Overview

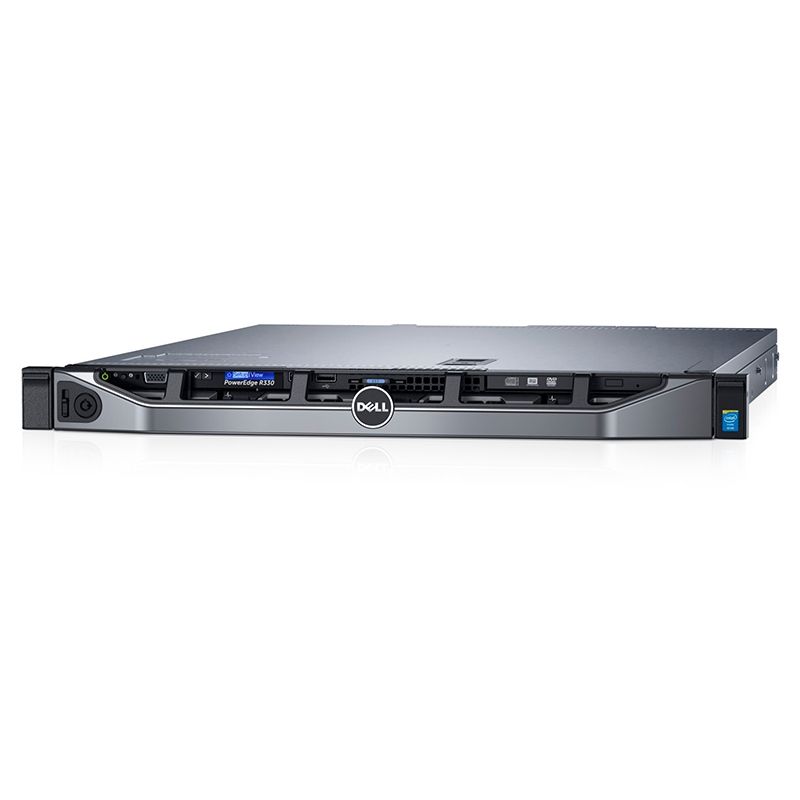

Quick Specs Figure 1 shows the appearance of Dell PowerEdge R330 Xeon E3-1220 v6 8GB 1TB SATA Rack Server.
Table 1 shows the Quick Specs.
| Product Series | Dell PowerEdge R330 Server |
| Model | Dell PowerEdge R330 Xeon E3-1220 v5 8GB 500GB SATA Rack Server |
| Customizable | Intel® Xeon® E3-1220 v5, Optional Operating System, 8GB Memory, 500GB SATA Hard Drive and a 3 Year Warranty |
| Base | PowerEdge R330 Server |
| Processor | Intel® Xeon® E3-1220 v5 3.0GHz, 8M cache, 4C/4T, turbo (80W) |
| Operating System | No Operating System |
| Memory | 8GB (1x8GB) 2400MT/s DDR4 ECC UDIMM |
| Hard Drive | 500GB 7.2K RPM SATA 3Gbps 3.5in Cabled Hard Drive |
| Warranty | 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site |
| Chipset | Intel C236 |
| Slots | 2 x PCIe 3.0 slots + 1 slot for internal storage |
| RAID Controllers | PERC S130, PERC H330, PERC H730, PERC H830 |
| Network Controller | 2 x 1GbE |
| Communications | Add-in network interface cards (NICs) and host bus adapters (HBAs)Broadcom dual and quad-port 1Gb Base-T adapterIntel dual and quad-port 1Gb Base-T adapterQlogic Quark dual-port 10Gb SFP+ and Base-T adapterFiber Channel HBAsEmulex 8Gb |
| Power | Up to 2 x 350W hot plug redundant power supplies |
| Availability | Hot-swap 3.5” front access hard drivesHot-swap 2.5” front access hard drivesHot-plug power supply units (PSU’s) |
| Chassis | 1U rack server |
| Rack Support | ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm. |
| Dimensions | The dimensions below are without bezel and without redundant PSU:Width: 17.08 in / 434.00 mmHeight: 1.68 in / 42.80 mmDepth: 24.60 in / 625.00 mm |
