-5%
Dell PowerEdge R530 Xeon E5-2620 v4 8GB 1TB SAS H330 Rack Server
Model: pe_r530_1451_a
Details: Customizable: Intel® Xeon® E5-2620 v4, 8GB Memory, 1TB Hard Drive and a 3 Year Warranty
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Dell PowerEdge R530 Xeon E5-2620 v4 8GB 1TB SAS H330 Rack Server Overview

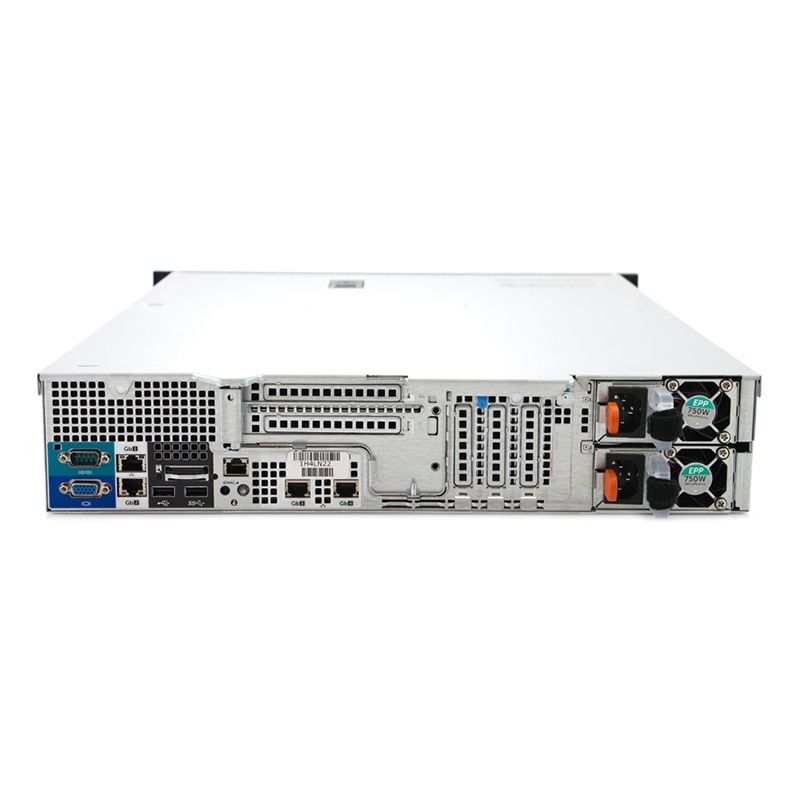

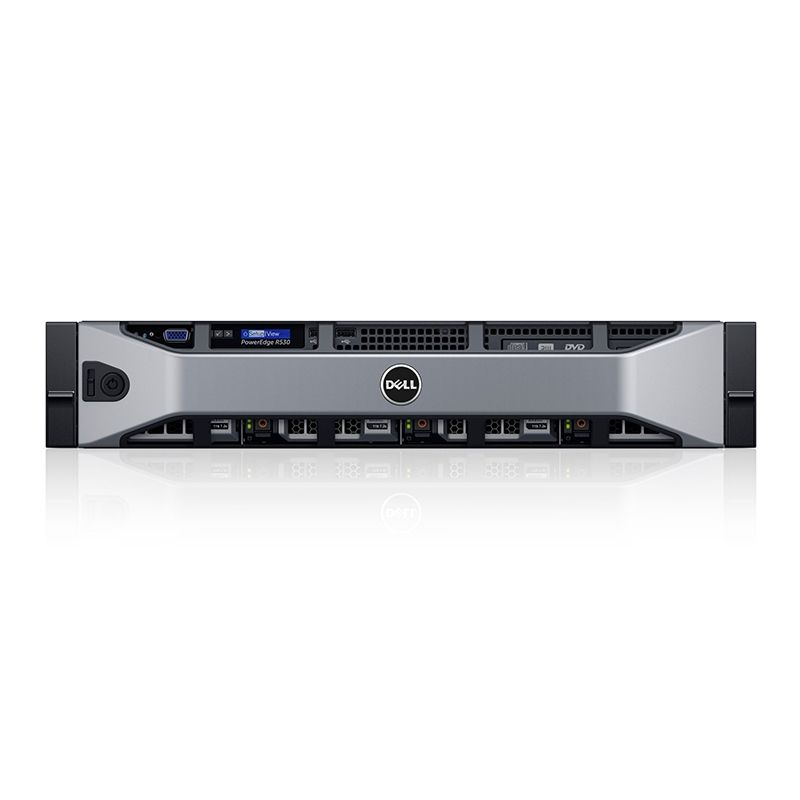

Quick Specs Figure 1 shows the appearance of Dell PowerEdge R530 Xeon E5-2620 v4 8GB 1TB SAS H330 Rack Server.
Table 1 shows the Quick Specs.
| Product Series | Dell PowerEdge R530 Server |
| Model | Dell PowerEdge R530 Xeon E5-2620 v4 8GB 1TB SAS H330 Rack Server |
| Customizable | Intel® Xeon® E5-2620 v4, 8GB Memory, 1TB SAS H330 Hard Drive and a 3 Year Warranty |
| Processor | Intel® Xeon® E5-2620 v4 2.1GHz,20M Cache,8.0GT/s QPI,Turbo,HT,8C/16T (85W) Max Mem 2133MHz |
| Operating System | No Operating System |
| Memory | 8GB RDIMM, 2400MT/s, Single Rank, x8 Data Width |
| Hard Drive | 1TB Hard Drive |
| Warranty | 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site |
| Chipset | Intel C610 series chipset |
| Storage | SAS, SATA, nearline SAS, SSD |
| Drive Bays | Up to 8 x 3.5” SAS, SATA, nearline SAS,SSD drives |
| Slots | Support for up to 5 x PCIe slots, half-length, low-profile): 3 x PCIe 3.0; 2 x PCIe 2.0 |
| RAID Controllers | Internal:PERC S130PERC H330PERC H730PERC H730PExternal:PERC H830 |
| Network Controller | 4 x 1 GbE LOMs |
| Communications | Optional add-in NICs, HBAs |
| Power | 495W AC, 750W AC, 1100W AC, hot-plug PSU; 1100W -48V DC hot-plug PSU; 450W AC cabled PSU |
| Availability | ECC memorySingle Device Data Correction (SDDC)Spare RankHot-plug hard drivesHot-plug redundant poweriDRAC8 with Lifecycle ControllerSupport for HA clusteringVirtualization-readyInternal Dual SD Module (Failsafe Hypervisor)TPM 1.2 |
| Graphics Card | Video Type :Integrated Matrox G200 with iDRAC8Video Memory: 16 MB shared with iDRAC8 application memory |
| Chassis | 2u rack:H: 8.68cmW: 48.24cmD: 66.8cm |
| Management | Systems management:IPMI 2.0 compliantDell OpenManage EssentialsDell OpenManage MobileDell OpenManage Power CenterRemote management:iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade),16GB vFlash media (upgrade), iDRAC Quick SyncDell OpenManage Integrations:Dell OpenManage Integration Suite forMicrosoft® System CenterDell OpenManage Integration for VMware® vCenter™Dell OpenManage Connections:HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems ManagementDell OpenManage Plug-in for Oracle® Database Manager |
