Dell PowerEdge R730 Xeon E5-2620 v4 8GB 2TB SAS H330 Rack Server
Model: pe_r730_1356_a
Details: Customizable: Intel® Xeon® E5-2620 v4, Optional Operating System, 8GB Memory, 2TB SAS H330 Hard Drive and a 3 Year Warranty
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Dell PowerEdge R730 Xeon E5-2620 v4 8GB 2TB SAS H330 Rack Server Overview

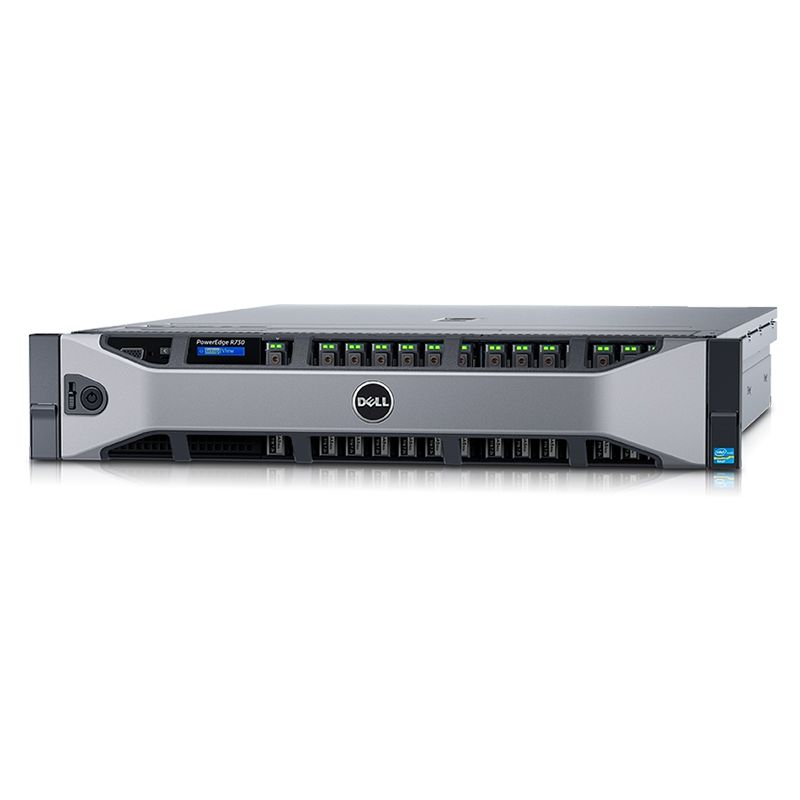

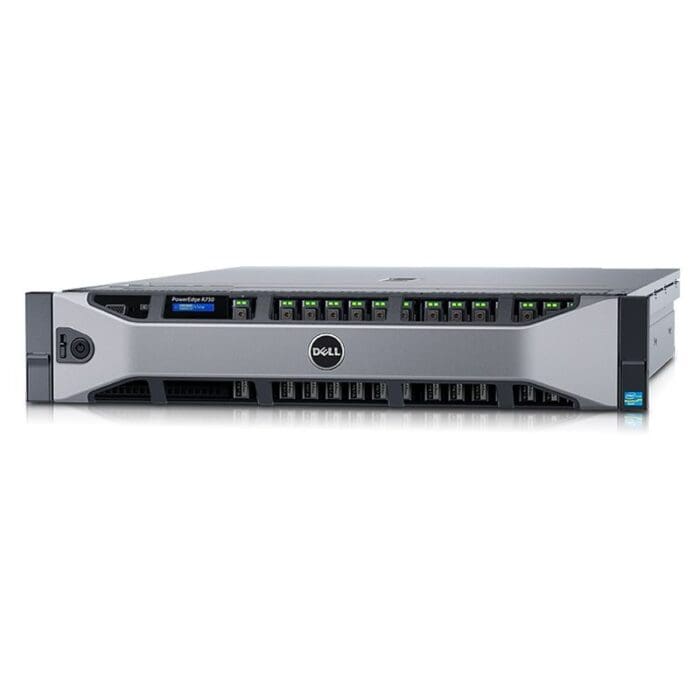

Quick Specs Figure 1 shows the appearance of Dell PowerEdge R730 Xeon E5-2620 v4 8GB 2TB SAS H330 Rack Server.
Table 1 shows the Quick Specs.
| Product Series | Dell PowerEdge R730 Server |
| Model | Dell PowerEdge R730 Xeon E5-2620 v4 8GB 2TB SAS H330 Rack Server |
| Customizable | Intel® Xeon® E5-2620 v4, Optional Operating System, 8GB Memory, 2TB SAS H330 Hard Drive and a 3 Year Warranty |
| Processor | Intel® Xeon® E5-2620 v4 2.1GHz,20M Cache,8.0GT/s QPI,Turbo,HT,8C/16T (85W) Max Mem 2133MHz |
| Operating System | No Operating System |
| Memory | 8GB RDIMM, 2400MT/s, Single Rank, x8 Data Width |
| Hard Drive | 2TB Hard Drive |
| Warranty | 3Yr Basic HW Warranty Repair, 5×10 NBD Onsite |
| Chipset | Intel C610 series chipset |
| Embedded Hypervisor (Optional) | Optional supported hypervisors:Microsoft® Windows Server® 2012, with Hyper-V®Citrix® XenServer®VMware® vSphere® ESXiTM |
| Storage | HDD: SAS, SATA, nearline SAS; SSD: SAS, SATA16 x 2.5” – up to 29TB via 1.8TB hot-plug SAS hard drives8 x 3.5” – up to 64TB via 8TB hot-plug nearline SAS hard drives |
| Drive Bays | Internal hard drive bay and hot-plug backplane:Up to 16 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATAUp to 8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA |
| Slots | Slot configuration #1:Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackettSlot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackettSlot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackettSlot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)Slot 6: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)Slot 7: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)Dedicated RAID card slotSlot configuration #2:Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracketSlot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracketSlot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracketSlot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)Dedicated RAID card slot |
| RAID Controllers | Internal:PERC S130PERC H330PERC H730PERC H730PExternal:PERC H830 |
| Network Controller | 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb |
| Communications | Broadcom® 5719 quad-port 1Gb NICBroadcom 5720 dual-port 1Gb NICBroadcom 57810 dual-port 10Gb DA/SFP+ CNABroadcom 57810 dual-port 10Gb Base-T network adapterIntel® Ethernet I350 dual-port 1Gb server adapterIntel Ethernet I350 quad-port 1Gb server adapterIntel Ethernet X540 dual-port 10GBASE-T server adapterMellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapterMellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapterEmulex® LPE 12000, single-port 8Gb Fibre Channel HBAEmulex LPE 12002, dual-port 8Gb Fibre Channel HBAEmulex LPe16000B, single-port 16Gb Fibre Channel HBAEmulex LPe16002B, dual-port 16Gb Fibre Channel HBAEmulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNAQLogic® 2560, single-port 8Gb Optical Fibre Channel HBAQLogic 2562, dual-port 8Gb Optical Fibre Channel HBAQlogic 2660, single-port 16GB, Fibre Channel HBA, full heightQlogic 2662, dual-port 16GB, Fibre Channel HBA, full height |
| Power | 1100W AC, 86 mm (Platinum)1100W DC, 86 mm (Gold)750W AC, 86 mm (Platinum)750W AC, 86 mm (Diamond)495W AC, 86 mm (Platinum) |
| Availability | ECC memoryHot-plug hard drivesHot-plug redundant coolingHot-plug redundant poweriDRAC8Internal Dual SD ModuleSingle Device Data Correction (SDDC)Spare RankTool-less chassisSupport for high availability clustering and virtualizationProactive systems management alertsiDRAC8 with Lifecycle Controller |
| Chassis | Dimensions: H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.) |
| Management | Dell OpenManage portfolio of systems management solutions, including:OpenManage Essentials consoleiDRAC8 with Lifecycle ControlleriDRAC DirectiDRAC Quick SyncOpenManage Mobile |
