Dell PowerEdge R930 Dual Xeon E7-4830 v4*2/ 128GB (8*16G) 1.2TB SAS H730P Rack Server
Model: pe_r930_1219_b
Details: Customizable: Dual Intel® Xeon® E7-4830 v4, Optional Operating System, 128GB Memory, 1.2TB SAS Hard Drive and a 3 year ProSupport Warranty
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Dell PowerEdge R930 Dual Xeon E7-4830 v4*2/ 128GB (8*16G) 1.2TB SAS H730P Rack Server Overview

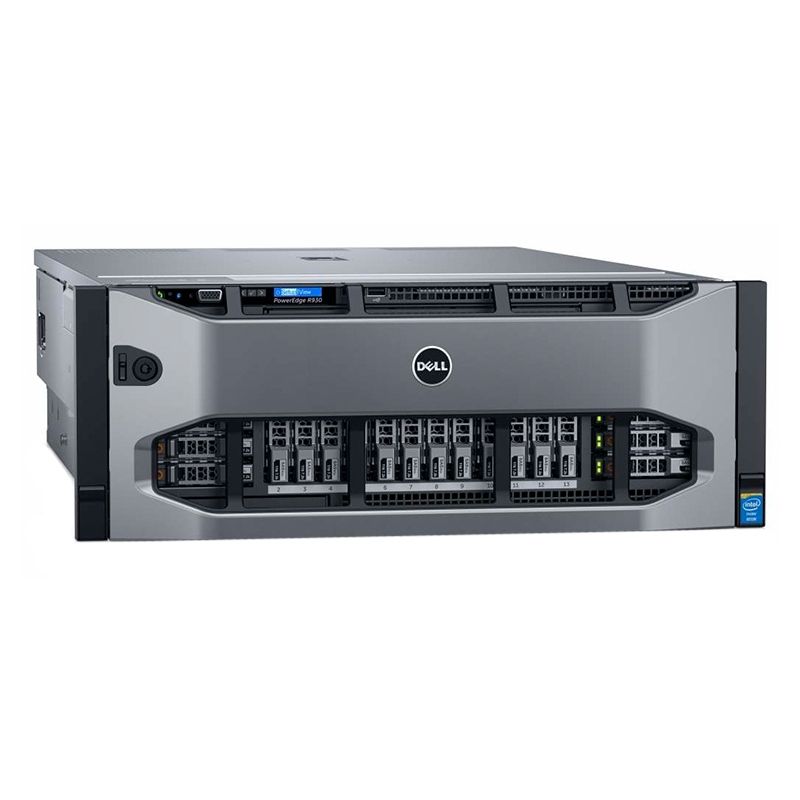

Quick Specs Figure 1 shows the appearance of Dell PowerEdge R930 Dual Xeon E7-4830 v4*2/ 128GB (8*16G) 1.2TB SAS H730P Rack Server.
 1.2TB SAS H730P Rack Server_1.png)
Table 1 shows the Quick Specs.
| Product Series | Dell PowerEdge R930 Server |
| Model | Dell PowerEdge R930 Dual Xeon E7-4830 v4*2/ 128GB (8*16G) 1.2TB SAS H730P Rack Server |
| Customizable | Dual Intel® Xeon® E7-4830 v4, Optional Operating System, 128GB Memory, 1.2TB SAS H730P Hard Drive and a 3 year ProSupport Warranty |
| Base | PE R930 Server MLK, No TPM |
| Processor | 2x Intel Xeon E7-4830 v4 2.0GHz,35M Cache,8.0GT/s QPI 14C/28T,HT,Turbo (115W) DDR4 1:1 MaxMem 1866Hz |
| Operating System | No Operating System |
| Memory | 128GB |
| Hard Drive | 1.2TB Hard Drive |
| Warranty | 3 Year ProSupport and NBD On-Site Service |
| Chipset | Intel® C602J |
| Storage | 2.5” SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K)2.5” Dell PowerEdge NVMe Express Flash PCIe SSD |
| Drive Bays | Up to 24 x 2.5” hot-plug 12Gb/6Gb SAS HDD or SAS/SATA SSDUp to 8 front-accessible Express Flash NVMe PCIe SSD (PCIe 3.0) |
| Slots | Up to 10 PCIe 3.0 slots1 RAID slot1 NDC slot |
| RAID Controllers | Internal controllers: PERC H330, PERC H730PExternal HBAs (RAID): PERC H830External HBAs (non-RAID): 12Gbps SAS HBA |
| Communications | Embedded NICs:Broadcom® 5720 quad-port 1Gb NDCBroadcom® 57800 2x10Gb DA/SFP+ + 2x1Gb BT NDCBroadcom® 57800 2x10Gb BT + 2x1Gb BT NDCBroadcom® 57840S quad-port 10Gb SFP+ Direct Attach Rack NDCIntel® I350 quad-port 1GbE NDCIntel® X520 dual-port 10Gb DA/SFP+, + I350 DP 1GbE, NDCIntel® X540 10GbE BT dual-port + I350 1Gb BT DP NDC |
| Power | Hot-plug redundant PSUs: 750W AC, 1100W AC |
| Availability | Hot-plug hard drives, hot-plug redundant power, hot-plug redundant fans, ECC memory, internal dual SD module |
| Graphics Card | Matrox® G200 with 8MB memory |
| Chassis | 4U |
| Management | iDRAC8 with Lifecycle ControlleriDRAC8 Express (default)iDRAC8 Enterprise (upgrade option)8GB or 16GB vFlash media (upgrade options)IPMI 2.0 compliantDell OpenManage EssentialsDell OpenManage MobileDell OpenManage Power CenterDell OpenManage Integrations:Dell OpenManage Integration Suite for Microsoft System CenterDell OpenManage Integration for VMware® vCenterDell OpenManage Connections:HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems ManagementDell OpenManage Plug-in for Oracle Database Manager |
| Rack Support | ReadyRails® II, the sliding rail system for the R930, provides tool-less support for 4-post racks with square or unthreaded round mounting holes, including all generations of Dell racks. The sliding rail system also supports tooled mounting in 4-post threaded racks |
| Dimensions | H: 6.8” (172.6mm)W: 18.99” (482.4mm)D: 31.59” (802.3mm) with PSU and bezelD: 31.01” (787.7mm) with PSU and without bezel |
