Dell PowerEdge T330 Xeon E3-1230 v5 8GB 500GB SATA Tower Server
Model: pe_t330_1566
Details: Customizable: Intel® Xeon® E3-1230 v5, Optional Operating System, 8GB Memory, 500GB Hard Drive and a 3 Year Warranty
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Dell PowerEdge T330 Xeon E3-1230 v5 8GB 500GB SATA Tower Server Overview

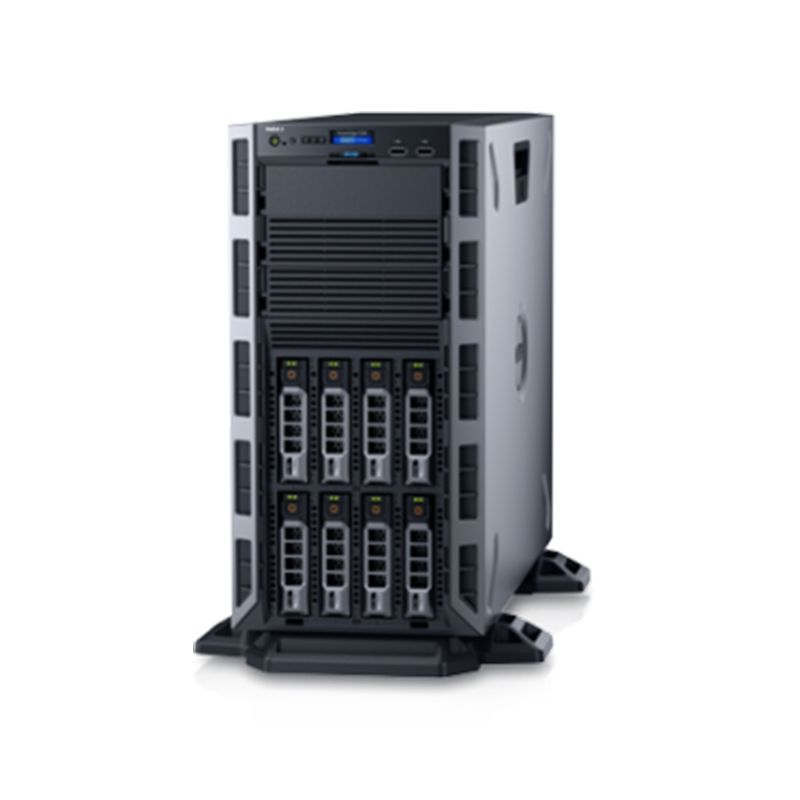

Quick Specs Figure 1 shows the appearance of Dell PowerEdge T330 Xeon E3-1230 v5 8GB 500GB SATA Tower Server.
Table 1 shows the Quick Specs.
| Product Series | Dell PowerEdge T330 Server |
| Model | Dell PowerEdge T330 Xeon E3-1230 V5 8BG 500GB SATA Tower Server |
| Customizable | Intel® Xeon® E3-1230 v5, Optional Operating System, 8GB Memory, 500GB Hard Drive and a 3 Year Warranty |
| Processor | Intel® Xeon® E3-1230 v5 3.4GHz, 8M cache, 4C/8T, turbo (80W) |
| Operating System | No Operating System |
| Memory | 8GB (1x8GB) 2400MT/s DDR4 ECC UDIMM |
| Hard Drive | 500GB 7.2K RPM SATA 3Gbps 3.5in Hot-plug Hard Drive |
| Warranty | 3 Years Basic Hardware Warranty Repair: 5×10 HW-Only, 5×10 NBD Onsite |
| Chipset | Intel C236 |
| Embedded Hypervisor (Optional) | Hypervisor SupportMicrosoft Windows Server with HyperV®VMware vSphere ESXi® |
| Storage | 2.5” SATA 7.2K2.5” SATA SSD’s2.5” nearline SAS 7.2K2.5” SAS 10K HDDs2.5” SAS 15K HDDs3.5” Enterprise SATA 7.2K HDDs3.5” nearline SAS 7.2K HDDs |
| Drive Bays | 8 x 3.5″ bays (also supports 2.5” HDD in 3.5” hybrid drive carrier) |
| Slots | 4 slots:1×8 PCIe 3.0 (x16 connector)1×4 PCIe 3.0 (x8 connector)1×4 PCIe 3.0 (x8 connector)1×1 PCIe 3.0 (x1 connector) |
| RAID Controllers | PERC S130, PERC H330, PERC H730, PERC H830 |
| Network Controller | Broadcom® BCM5720 |
| Communications | 2 X 1GbE LOM |
| Power | 1 x 350W cabled PSUor up to 2 x 495W redundant PSUs |
| Device Access | 8 total USB:Rear USB: 2 x USB3.0 + 4 x USB 2.0Front USB: 1 x USB 2.0 + 1 x USB 3.0 |
| Management | Systems management:IPMI 2.0 compliantDell OpenManage EssentialsDell OpenManage MobileDell OpenManage Power CenterDell OpenManage Integrations:Dell OpenManage Integration Suite for Microsoft System CenterDell OpenManage Integration for VMware vCenter®Dell OpenManage Connections:HP Operations ManagerIBM Tivoli® Netcool®CA Network and Systems ManagementDell OpenManage Plug-in for Oracle® Database ManagerRemote management:iDRAC8 with Lifecycle ControlleriDRAC8 Express (default)iDRAC8 Enterprise (upgrade)8GB vFlash media (upgrade)16GB vFlash media (upgrade) |
| Dimensions | Height: chassis base height – 430.3 mm/17.04 inWith foot – 443.3 mm/17.45 inWith wheel – 471.3 mm/18.55 inWidth: chassis base width – 218 mm/8.58 inWith foot – 304.5 mm/11.98 inDepth: front to rear wall (w/o bezel) – 542.2 mm/21.33 infront to PSU handle (w/o bezel) – 578.42 mm/22.77 infront to rear wall (with bezel) – 558.6 mm/21.99 infront to PSU handle (with bezel) – 594.82 mm/23.41 in |
