Dell PowerEdge T430 Xeon E5-2603 v4 4GB 1TB SAS H330 Tower Server
Model: pe_t430_1454
Details: Fully Customizable: Intel® Xeon® E5-2603 v4, Optional Operating System, 4GB Memory, 1TB Hard Drive, SAS, H330 and a 3 Year Warranty
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Dell PowerEdge T430 Xeon E5-2603 v4 4GB 1TB SAS H330 Tower Server Overview

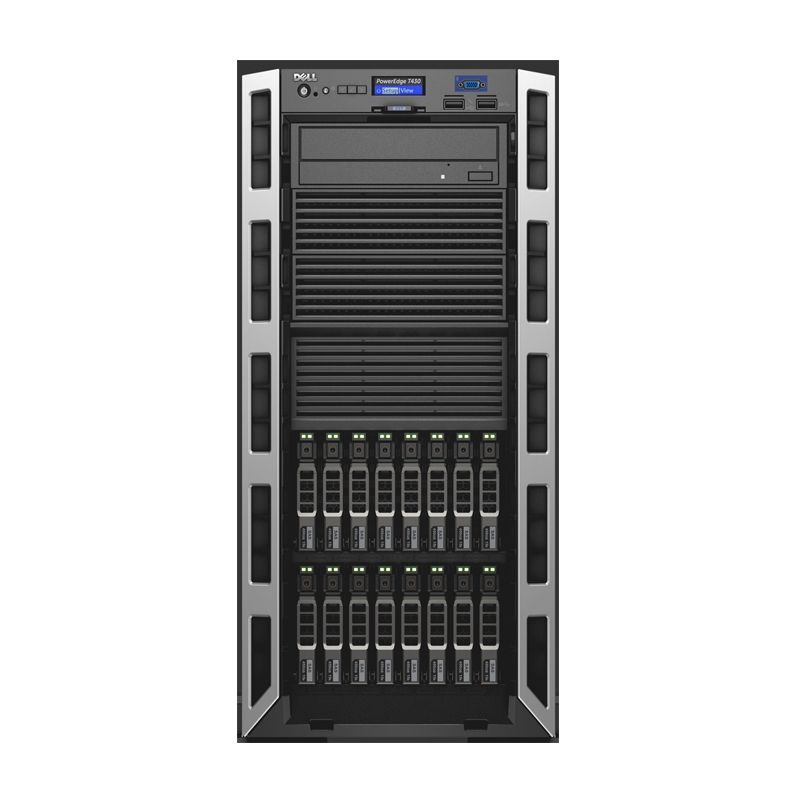

Quick Specs Figure 1 shows the appearance of Dell PowerEdge T430 Xeon E5-2603 v4 4GB 1TB SAS H330 Tower Server.
Table 1 shows the Quick Specs.
| Product Series | Dell PowerEdge T430 Server |
| Model | Dell PowerEdge T430 Xeon E5-2603 v4 4GB 1TB SAS H330 Tower Server |
| Fully Customizable | Intel® Xeon® E5-2603 v4, Optional Operating System, 4GB Memory, 1TB Hard Drive, SAS, H330 and a 3 Year Warranty |
| Processor | Intel® Xeon® E5-2603 v4 1.7GHz,15M Cache,6.4GT/s QPI,6C/6T (85W) Max Mem 1866MHz |
| Operating System | No Operating System |
| Memory | 4GB RDIMM, 2400MT/s, Single Rank, x8 Data Width |
| Hard Drive | 1TB Hard Drive |
| Warranty | 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site |
| Chipset | Intel C610 series chipset |
| Embedded Hypervisor (Optional) | Citrix® XenServer®Microsoft® Windows Server® 2008, with Hyper-V®VMware® vSphere |
| Storage | SAS, SATA, nearline SAS, SSD |
| Drive Bays | Up to 8 x3.5” SAS, SATA, nearline SAS,SSD drives with optional flex bayUp to 4 x3.5” SAS, SATA, nearline SAS,SSD drives with optional flex bayUp to 16 x 2.5” SAS, SATA, nearline SAS, SSD drives with optional flex bay |
| Slots | Support for up to 2 x PCIe 2.0 + 4 x PCIe 3.0 |
| RAID Controllers | Support for a maximum of 1 internal controller and one external controllerPERC Η730,PERC Η730P and PERC Η830 |
| Network Controller | 2 x 1GbE LOMs |
| Communications | Broadcom 5720Optional add-in NICs |
| Power | 495W, 750W, 1100W hot-plug PSU450W cabled PSU |
| Availability | ECC memorySingle Device Data Correction (SDDC)Spare RankHot-plug hard drivesHot-plug redundant poweriDRAC8 with Lifecycle ControllerSupport for HA clusteringVirtualization-readyInternal Dual SD Module (Failsafe Hypervisor)TPM 1.2 |
| Graphics Card | Video Type: Integrated Matrox® G200 with iDRAC8Video Memory: 16 MB shared with iDRAC8 application memory |
| Chassis | Height:Chassis base height – 430.3 mm (17.04″)with feet – 443.3 mm (17.45″)Width:Chassis base width 5U – 218 mm (8.58″)with feet – 304.5 mm (11.98″)Depth:front to rear wall (with bezel) – 558.6 mm (21.99″) |
| Management | Systems management:IPMI 2.0 compliantDell OpenManage EssentialsDell OpenManage MobileDell OpenManage Power CenterRemote management:iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade),16GB vFlash media (upgrade), iDRAC Quick SyncDell OpenManage Integrations:Dell OpenManage Integration Suite forMicrosoft® System CenterDell OpenManage Integration for VMware® vCenter™Dell OpenManage Connections:HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems ManagementDell OpenManage Plug-in for Oracle® Database Manager |
