Dell PowerEdge T630 Xeon E5-2620 v4 8GB 1TB SAS H330 Tower Server
Dell PowerEdge T630 Xeon E5-2620 v4 8GB 1TB SAS H330 Tower Server Original price was: $2,464.15.Current price is: $2,340.94.

Dell PowerEdge T630 Xeon E5-2603 v4 4GB 1TB SAS H330 Tower Server

Original price was: $2,209.15.Current price is: $2,098.69.

Model: pe_t630_1023
Details: Fully Customizable: Intel® Xeon® E5-2603 v4, Optional Operating System, 4GB Memory, 1TB Hard Drive, SAS, H330 and a 3 Year Warranty
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: Dell PowerEdge T630 Xeon E5-2603 v4 4GB 1TB SAS H330 Tower Server Category:
Description

Dell PowerEdge T630 Xeon E5-2603 v4 4GB 1TB SAS H330 Tower Server Overview

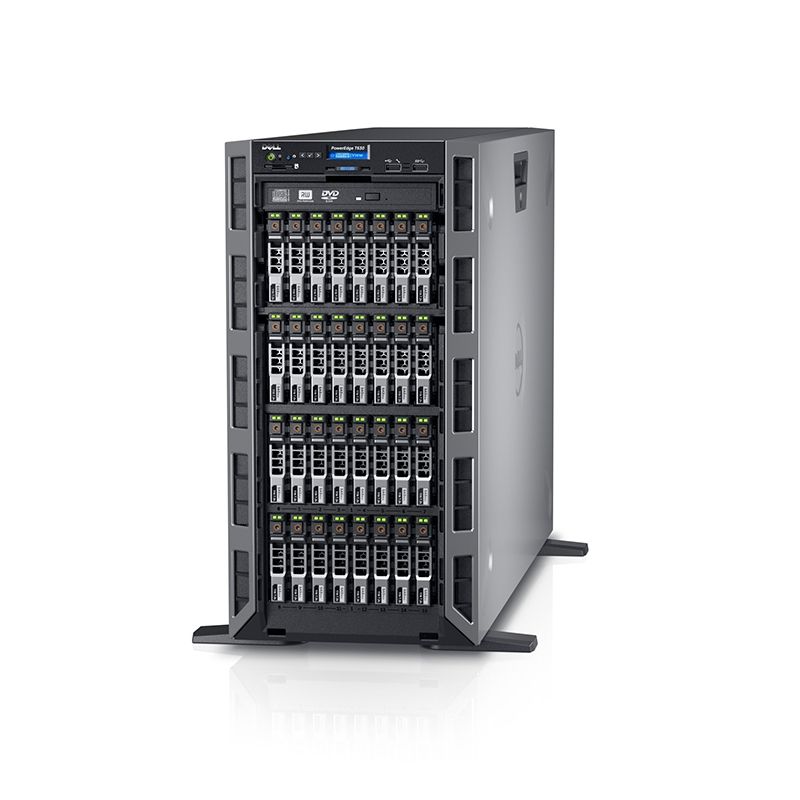

Quick Specs Figure 1 shows the appearance of Dell PowerEdge T630 Xeon E5-2603 v4 4GB 1TB SAS H330 Tower Server.

Table 1 shows the Quick Specs.

Product Series Dell PowerEdge T630 Server
Model Dell PowerEdge T630 Xeon E5-2603 v4 4GB 1TB SAS H330 Tower Server
Fully Customizable Intel® Xeon® E5-2603 v4, Optional Operating System, 4GB Memory, 1TB Hard Drive, SAS, H330 and a 3 Year Warranty
Processor Intel® Xeon® E5-2603 v4 1.7GHz,15M Cache,6.4GT/s QPI,6C/6T (85W) Max Mem 1866MHz
Operating System No Operating System
Memory 4GB RDIMM, 2400MT/s, Single Rank, x8 Data Width
Hard Drive 1TB Hard Drive
Warranty 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site
Chipset Intel C610 series chipset
Embedded Hypervisor (Optional) Microsoft® Windows Server® 2008, with Hyper-V®VMware® ESXiCitrix XenServer
Storage SAS, SATA, Near-line SAS, SSD, PCIe SSDUp to 4 optional Express Flash PCIe SSDsUp to 144TB via 18 x 8TB 3.5” HDDs
Drive Bays Internal hard drive bay and hot-plug backplane:Up to 8 x 3.5” SAS, SATA, Near-Line SAS,SSD, PCIe SSD drives with optional flex bayUp to 18 x 3.5” SAS, SATA, Near-Line SAS,SSD drives without optional flex bayUp to 16 x 2.5” SAS, SATA, Near-line SAS, SSD, PCIe SSD drives with optional flex bayUp to 32 x 2.5” SAS, SATA, Near-Line SAS,SSD drives with optional flex bay
Slots Slot 1: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector)Slot 2: Full Length, Full Height, PCH – PCIe Gen2 x4 (x8 connector)Slot 3: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector)Slot 4: Half Length, Full Height, CPU2 – PCIe Gen3 x8 (x8 connector)Slot 5: Full Length, Full Height, CPU2 – PCIe Gen2 (DMI) x4 (x8 connector)Slot 6: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector)Slot 7: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector)Slot 8: Half Length, Full Height, CPU1 – PCIe Gen3 x8 (x8 connector)
RAID Controllers Internal:PERC S130PERC H330PERC H730PERC H730PExternal:PERC H830
Network Controller 2 x 1Gb
Communications Broadcom® 5719 quad-port 1Gb NICBroadcom 5720 dual-port 1Gb NICBroadcom 57810 dual-port 10Gb DA/SFP+ CNABroadcom 57810 dual-port 10Gb Base-T network adapterIntel® Ethernet I350 dual-port 1Gb server adapterIntel Ethernet I350 quad-port 1Gb server adapterIntel Ethernet X540 dual-port 10GBASE-T server adapterMellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapterMellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapterEmulex® LPE 12000, single-port 8Gb Fibre Channel HBAEmulex LPE 12002, dual-port 8Gb Fibre Channel HBAEmulex LPe16000B, single-port 16Gb Fibre Channel HBAEmulex LPe16002B, dual-port 16Gb Fibre Channel HBAEmulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNAQLogic® 2560, single-port 8Gb Optical Fibre Channel HBAQLogic 2562, dual-port 8Gb Optical Fibre Channel HBAQlogic 2660, single-port 16GB, Fibre Channel HBA, full heightQlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
Power Titanium efficiency 750W AC power supplyGold efficiency 1100W DC power supplyPlatinum efficiency 495W, 750W, 1100W or 1600W AC power supply
Availability ECC memoryHot-plug hard drivesHot-plug redundant coolingHot-plug redundant poweriDRAC8Internal Dual SD ModuleSingle Device Data Correction (SDDC)Spare RankTool-less chassisSupport for high availability clustering and virtualizationProactive systems management alertsiDRAC8 with Lifecycle Controller
Graphics Card Video Type :Integrated Integrated Matrox G200 with iDRAC8Video Memory: 16 MB shared with iDRAC8 application memoryGPUs – Support for up to four optional 300W internal GPU processing accelerators
Chassis Form Factor: 5UHeight 443.5 mm (17.5 inch) with feet434.5 mm (17.1 inch) without feetWidth:48.2cm (18.98”)Depth:75.09cm (29.56”)Max Weight:T630 full system with 2.5” HDD:Max 2.5″x16 (6 fans) 37.57Kg/82.75lbMax 2.5″x32 (6 fans) 40.55Kg/89.32lbT630 full system with 3.5” HDD:Max 3.5″x18 (6 fans) 49.65 Kg/109.36 lb
Management Dell OpenManage portfolio of systems management solutions, including:OpenManage Essentials consoleiDRAC8 with Lifecycle Controller

Get more information
Do you have any question about the Dell PowerEdge T630 Xeon E5-2603 v4 4GB 1TB SAS H330 Tower Server?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Dell certified engineer under customers’ permission.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured
