-5%
Dell PowerEdge T630 Xeon E5-2650 v4 32GB 2TB SAS H330 Tower Server
Model: pe_t630_1023_c
Details: Customizable: Intel® Xeon® E5-2650 v4, Windows Server® 2012 Standard, 32GB Memory, 2TB Hard Drive and a 3 Year ProSupport Warranty
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Dell PowerEdge T630 Xeon E5-2650 v4 32GB 2TB SAS H330 Tower Server Overview

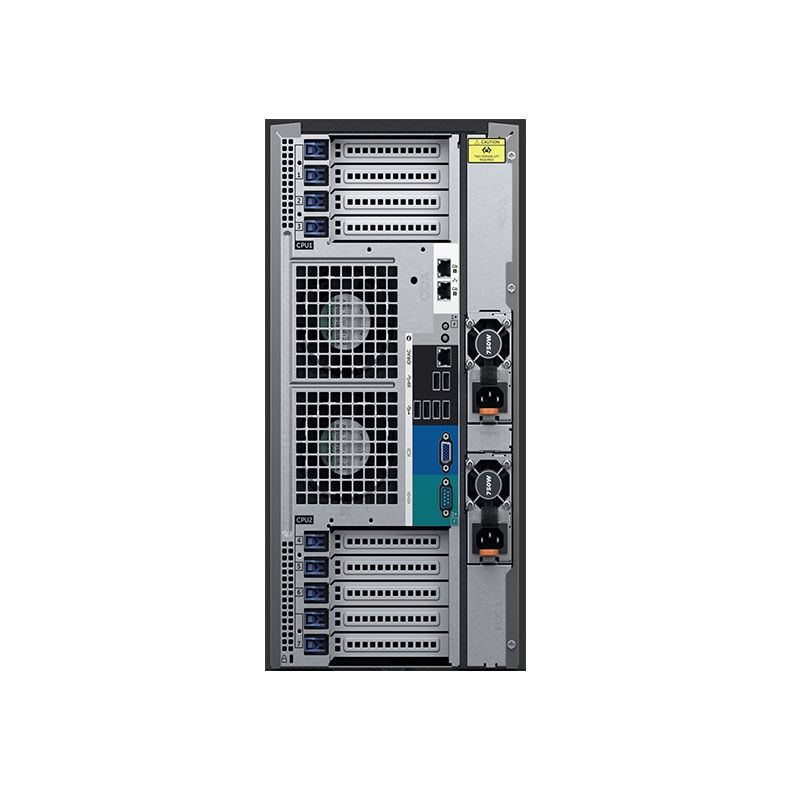

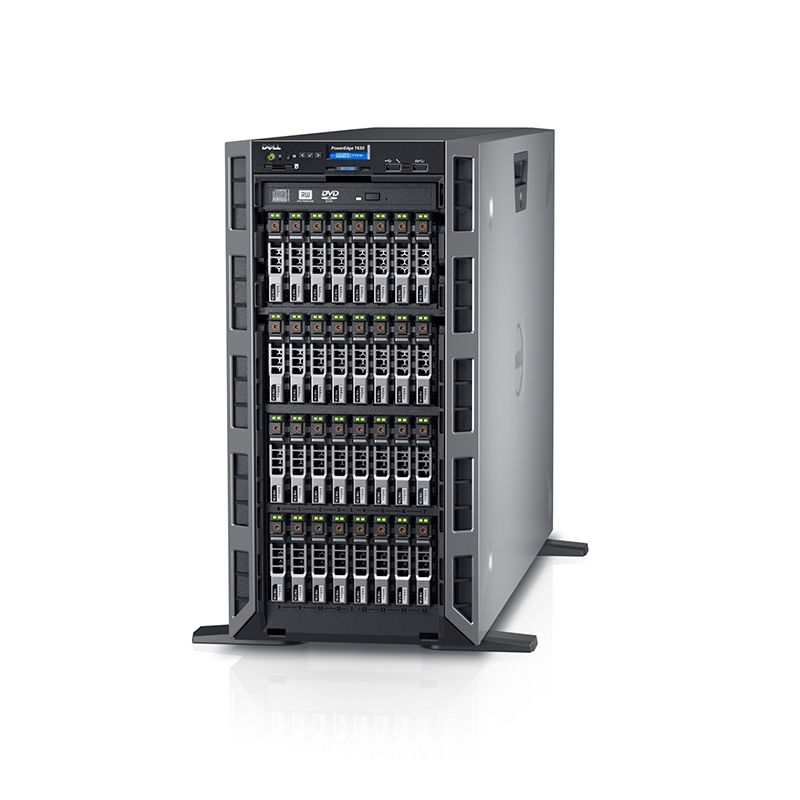

Quick Specs Figure 1 shows the appearance of Dell PowerEdge T630 Xeon E5-2650 v4 32GB 2TB SAS H330 Tower Server.
Table 1 shows the Quick Specs.
| Product Series | Dell PowerEdge T630 Server |
| Model | Dell PowerEdge T630 Xeon E5-2650 v4 32GB 2TB SAS H330 Tower Server |
| Customizable | Intel® Xeon® E5-2650 v4, Windows Server® 2012 Standard, 32GB Memory, 2TB Hard Drive, SAS, H330 and a 3 Year ProSupport Warranty |
| Processor | Intel® Xeon® E5-2650 v4 2.2GHz,30M Cache,9.60GT/s QPI,Turbo,HT,12C/24T (105W) Max Mem 2400MHz |
| Operating System | Windows Server 2012R2 STD Ed PLUS,Factory Install,No Media,4Skt,4VMs,NO CAL |
| Memory | 32GB RDIMM, 2400MT/s, Dual Rank, x4 Data Width |
| Hard Drive | 2TB Hard Drive |
| Warranty | 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site |
| Chipset | Intel C610 series chipset |
| Embedded Hypervisor (Optional) | Microsoft® Windows Server® 2008, with Hyper-V®VMware® ESXiCitrix XenServer |
| Storage | SAS, SATA, Near-line SAS, SSD, PCIe SSDUp to 4 optional Express Flash PCIe SSDsUp to 144TB via 18 x 8TB 3.5” HDDs |
| Drive Bays | Internal hard drive bay and hot-plug backplane:Up to 8 x 3.5” SAS, SATA, Near-Line SAS,SSD, PCIe SSD drives with optional flex bayUp to 18 x 3.5” SAS, SATA, Near-Line SAS,SSD drives without optional flex bayUp to 16 x 2.5” SAS, SATA, Near-line SAS, SSD, PCIe SSD drives with optional flex bayUp to 32 x 2.5” SAS, SATA, Near-Line SAS,SSD drives with optional flex bay |
| Slots | Slot 1: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector)Slot 2: Full Length, Full Height, PCH – PCIe Gen2 x4 (x8 connector)Slot 3: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector)Slot 4: Half Length, Full Height, CPU2 – PCIe Gen3 x8 (x8 connector)Slot 5: Full Length, Full Height, CPU2 – PCIe Gen2 (DMI) x4 (x8 connector)Slot 6: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector)Slot 7: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector)Slot 8: Half Length, Full Height, CPU1 – PCIe Gen3 x8 (x8 connector) |
| RAID Controllers | Internal:PERC S130PERC H330PERC H730PERC H730PExternal:PERC H830 |
| Network Controller | 2 x 1Gb |
| Communications | Broadcom® 5719 quad-port 1Gb NICBroadcom 5720 dual-port 1Gb NICBroadcom 57810 dual-port 10Gb DA/SFP+ CNABroadcom 57810 dual-port 10Gb Base-T network adapterIntel® Ethernet I350 dual-port 1Gb server adapterIntel Ethernet I350 quad-port 1Gb server adapterIntel Ethernet X540 dual-port 10GBASE-T server adapterMellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapterMellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapterEmulex® LPE 12000, single-port 8Gb Fibre Channel HBAEmulex LPE 12002, dual-port 8Gb Fibre Channel HBAEmulex LPe16000B, single-port 16Gb Fibre Channel HBAEmulex LPe16002B, dual-port 16Gb Fibre Channel HBAEmulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNAQLogic® 2560, single-port 8Gb Optical Fibre Channel HBAQLogic 2562, dual-port 8Gb Optical Fibre Channel HBAQlogic 2660, single-port 16GB, Fibre Channel HBA, full heightQlogic 2662, dual-port 16GB, Fibre Channel HBA, full height |
| Power | Titanium efficiency 750W AC power supplyGold efficiency 1100W DC power supplyPlatinum efficiency 495W, 750W, 1100W or 1600W AC power supply |
| Availability | ECC memoryHot-plug hard drivesHot-plug redundant coolingHot-plug redundant poweriDRAC8Internal Dual SD ModuleSingle Device Data Correction (SDDC)Spare RankTool-less chassisSupport for high availability clustering and virtualizationProactive systems management alertsiDRAC8 with Lifecycle Controller |
| Graphics Card | Video Type :Integrated Integrated Matrox G200 with iDRAC8Video Memory: 16 MB shared with iDRAC8 application memoryGPUs – Support for up to four optional 300W internal GPU processing accelerators |
| Chassis | Form Factor: 5UHeight 443.5 mm (17.5 inch) with feet434.5 mm (17.1 inch) without feetWidth:48.2cm (18.98”)Depth:75.09cm (29.56”)Max Weight:T630 full system with 2.5” HDD:Max 2.5″x16 (6 fans) 37.57Kg/82.75lbMax 2.5″x32 (6 fans) 40.55Kg/89.32lbT630 full system with 3.5” HDD:Max 3.5″x18 (6 fans) 49.65 Kg/109.36 lb |
| Management | Dell OpenManage portfolio of systems management solutions, including:OpenManage Essentials consoleiDRAC8 with Lifecycle Controller |
