Dell R450 8SFF Server
Model: Dell R450 8SFF Server – Dell PowerEdge R450 Server
Details: Dell R450 8SFF Server
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Dell R450 8SFF Server Overview

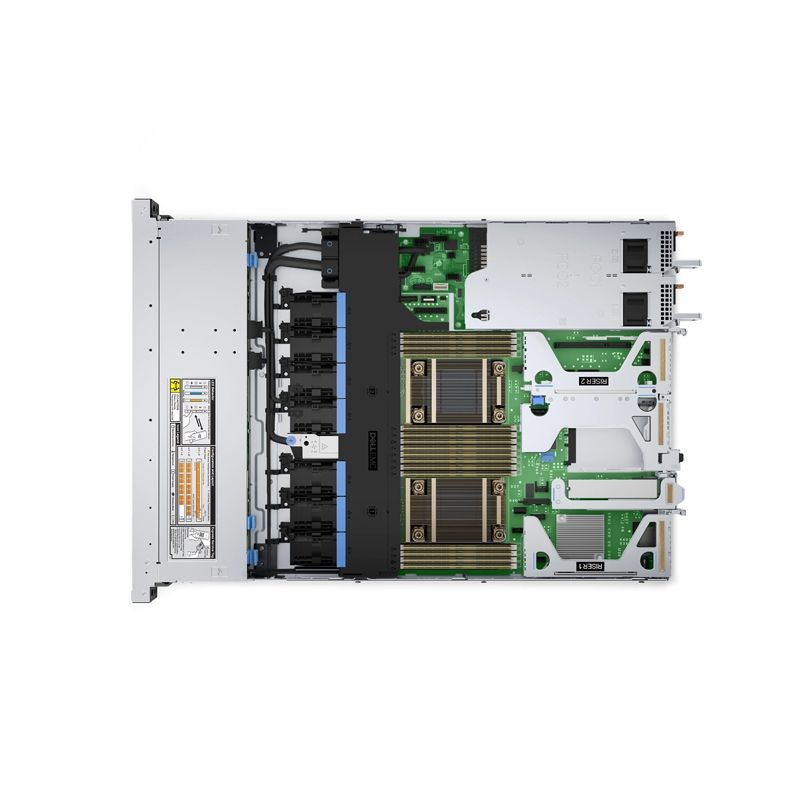

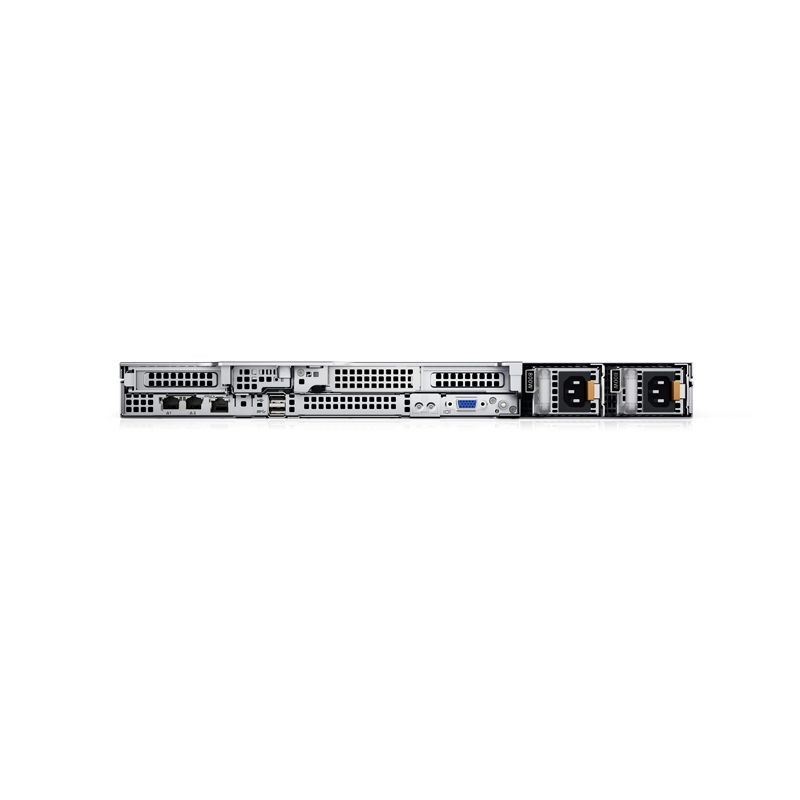

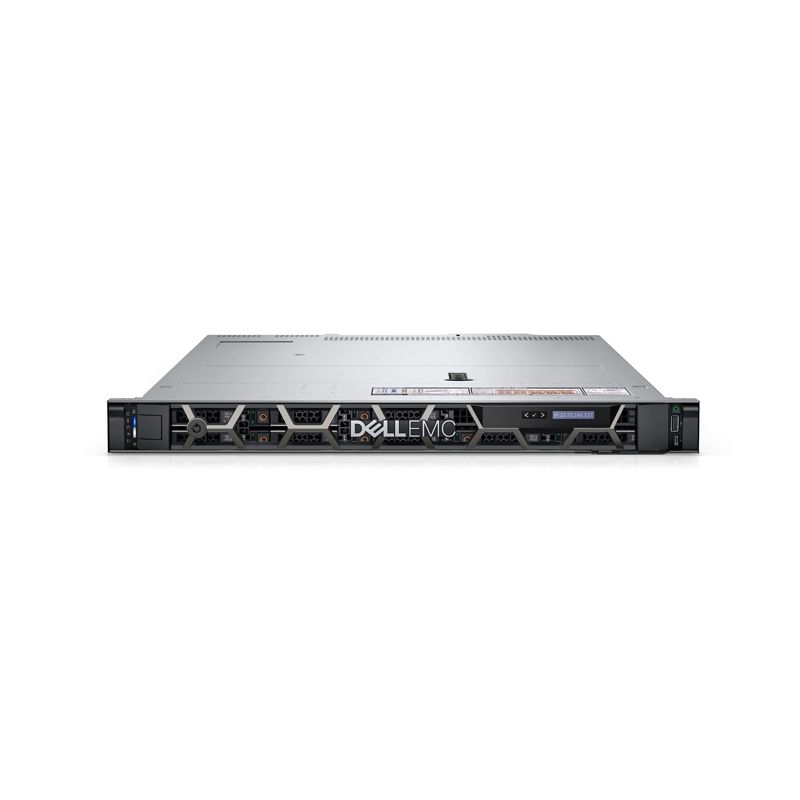

Quick Specs Figure 1 shows the appearance of Dell R450 8SFF Server.
Table 1 shows the Quick Specs.
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 24 cores per processor |
| Memory | Memory 16 DDR4 DIMM slots, supports RDIMM max 1 TB, speeds up to 2933 MT/s |
| Storage controllers | • Internal controllers (RAID): PERC H345, PERC H355, HBA355i, PERC H745, PERC H755, S150• Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2x M.2 SSDs or USB• External PERC (RAID): PERC H840• External HBA (non-RAID) HBA355e |
| Drive Bays | Front bays:• Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB• Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 61.4 TB |
| Power Supplies | • 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant• 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant• 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input) |
| Cooling Options | Air cooling |
| Fans | • Standard (STD) fans or High performance SLVR fans• Up to seven cold swap fans |
| Dimensions | • Height – 42.8 mm (1.7 inches)• Width – 482 mm (18.97 inches)• Depth – 734.95 mm (28.92 inches) – without bezel748.79 mm (29.47 inches) – with bezel |
| Form Factor | 1U rack server |
| Embedded Management | • iDRAC9• iDRAC Direct• iDRAC RESTful API with Redfish• iDRAC Service Module• Quick Sync 2 wireless module |
| Bezel | Optional LCD bezel or security bezel |
| OpenManage Software | • OpenManage Enterprise• OpenManage Power Manager plugin• OpenManage SupportAssist plugin• OpenManage Update Manager plugin |
| Mobility | OpenManage Mobile |
| Integrations and Connections | OpenManage Integrations• BMC Truesight• Microsoft System Center• Red Hat Ansible Modules• VMware vCenter and vRealize Operations ManagerOpenManage Connections• IBM Tivoli Netcool/OMNIbus• IBM Tivoli Network Manager IP Edition• Micro Focus Operations Manager• Nagios Core• Nagios XI |
| Security | • Cryptographically signed firmware• Secure Boot• Secure Erase• Silicon Root of Trust• System Lockdown (requires iDRAC9 Enterprise or Datacenter)• TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC | 2 x 1 GbE LOM |
| Network Options | 1 x OCP 3.0 |
| GPU Options | NA |
| Ports | Front Ports• 1 x Dedicated iDRAC Direct micro-USB• 1 x USB 3.0• 1 x VGARear Ports• 1 x USB 2.0• 1 x Serial (optional)• 1 x iDRAC ethernet port• 1 x USB 3.0• 2 x Ethernet• 1 x VGAInternal Ports• 1 x USB 3.0 (optional) |
| PCIe | 2 x PCIe Gen4 slots + PCIe Gen• 2 x16 Gen4 (x16 connector) low profile, half length• 1 x4 Gen3 (x8 connector) low profile, half length |
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS• Citrix Hypervisor• Microsoft Windows Server with Hyper-V• Red Hat Enterprise Linux• SUSE Linux Enterprise Server• VMware ESXi |
