Dell R650 8SFF Server
Model: Dell R650 8SFF Server – Dell PowerEdge R650 Server
Details: Dell R650 8SFF Server
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Dell R650 8SFF Server Overview

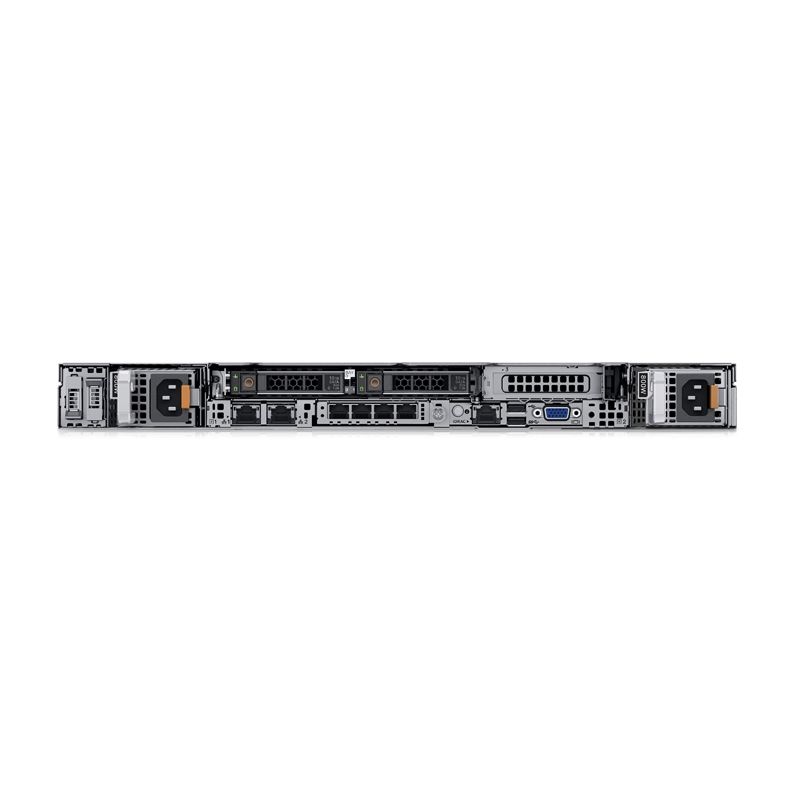

Quick Specs Figure 1 shows the appearance of Dell R650 8SFF Server.
Table 1 shows the Quick Specs.
| Processor | Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 24 cores per processor |
| Operating System | (Dell Technologies recommends Windows 11 Pro for business)Canonical® Ubuntu® Server LTSCitrix® Hypervisor®Microsoft® Windows Server® with Hyper-VRed Hat® Enterprise LinuxSUSE® Linux Enterprise ServerVMware® ESXi® |
| Chipset | Intel®C620A chipset |
| Accelerators | Up to three 75 W single-width GPU |
| Memory | DIMM SpeedUp to 3200 MT/sMemory TypeRDIMMLRDIMMNVDIMMIntel® Persistent Memory 200 series (BPS)Memory Module Slots32 DDR4 DIMM slotsMaximum RAMRDIMM 2 TBLRDIMM 4TBNVDIMM 128 GBIntel® Persistent Memory 200 series (BPS) 8TB |
| Storage | Front BaysUp to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TBUp to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TBUp to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TBRear baysUp to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB |
| Storage Controllers | Internal ControllersPERC H745, H345, HBA355I, H755, H755NExternal ControllersPERC H840, HBA355ESoftware RAIDS150Internal BootBoot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GBBoot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GBInternal Dual SD Module orInternal USB 3.0 |
| Security | Cryptographically signed firmwareSecure BootSecure EraseSilicon Root of TrustSystem Lockdown (requires iDRAC9 Enterprise or Datacenter)TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-ServeriDRAC9iDRAC Service ModuleiDRAC DirectQuick Sync 2 wireless moduleConsolesOpenManage EnterpriseOpenManage Power Manager pluginOpenManage SupportAssist pluginOpenManage Update Manager pluginMobilityOpenManage MobileToolsiDRAC RESTful API with RedfishIPMIRACADM CLISystem Update UtilityUpdate CatalogsOpenManage IntegrationsBMC® TruesightMicrosoft® System CenterRed Hat® Ansible® ModulesVMware® vCenter and vRealize Operations ManagerOpenManage connectionsIBM Tivoli® Netcool/OMNIbusIBM Tivoli® Network Manager IP EditionMicro Focus® Operations ManagerNagios CoreNagios® XI |
| Power Supplies | 800 W Platinum AC/240 V Mixed Mode1100 W Titanium AC/240 V Mixed Mode1400 W Platinum AC/240 V Mixed Mode1100 W DC -48 – 60 VHot plug power supplies with full redundancy option |
| Ports | Network Options2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)Front Ports1 x iDRAC Direct (Micro-AB USB) port1 x USB 2.01 x VGARear Ports1 x USB 2.01 x USB 3.01 x Serial (optional)2 x RJ-451 x VGA (optional for liquid cooling configuration)Internal Ports1 x USB 3.0 (optional) |
| Slots | Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slotsVideo Card1 x VGA (optional for liquid cooling configuration) |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 1U rack server |
| Dimensions & Weight | Height42.8 mm (1.68 inches)Width482 mm (18.97 inches)Depth809 mm (31.85 inches) – without bezel822.84 mm (32.39 inches) – with bezelWeight21.2 kg (46.7 lbs) |
| Rack Support | ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
