Dell R750xs 8LFF Server
Model: Dell R750xs 8LFF Server – Dell PowerEdge R750xs Server
Details: Dell R750xs 8LFF Server bundle
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Dell R750xs 8LFF Server Overview

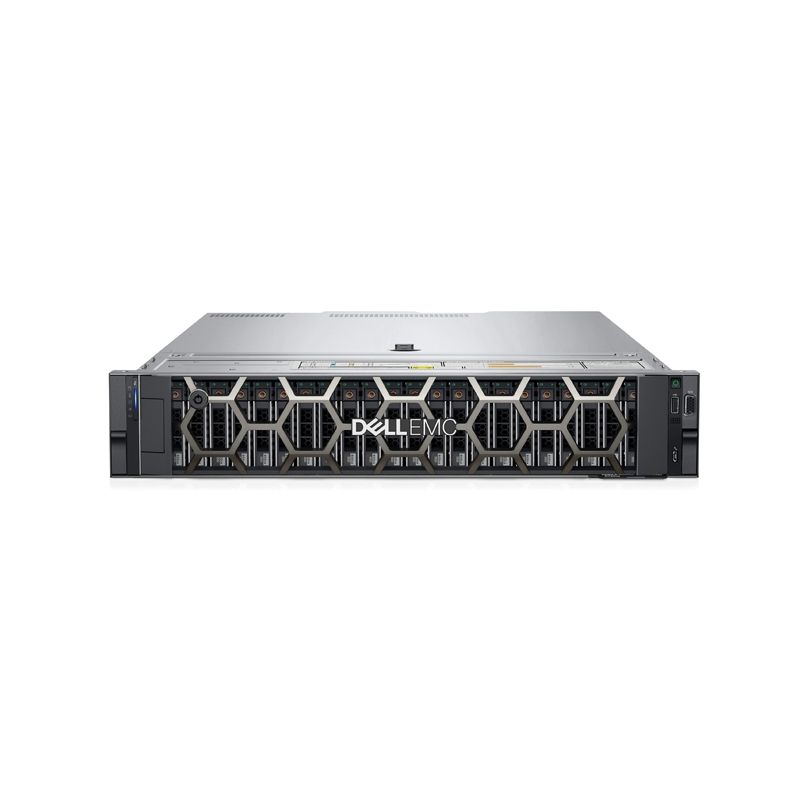

Quick Specs Figure 1 shows the appearance of Dell R750xs 8LFF Server.
Table 1 shows the Quick Specs.
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores |
| Memory | • 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s• Supports registered ECC DDR4 DIMMs only |
| Storage controllers | • Internal controllers: PERC H345, PERC H745, PERC H755, PERC H755N, HBA355i, S150• Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB• External PERC (RAID): PERC H840, HBA355e |
| Drive Bays | Front bays:• 0 drive bay• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB• Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB• Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TBRear bays:• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB |
| Power Supplies | • 600 W DC/240 V• 600 W Platinum AC/100 – 240 V• 800 W DC/240 V• 800 W Platinum AC/100 – 240 V• 1100 W DC/-48–(-60) V• 1100 W DC/240 V• 1100 W Titanium AC/100 – 240 V• 1400 W DC/240 V• 1400 W Platinum AC/100 – 240 V |
| Cooling Options | Air cooling |
| Fans | • Standard fans/High performance Silver fans/High performance Gold fans• Up to six hot swap fans |
| Dimensions | • Height – 86.8 mm (3.41 inches)• Width – 482 mm (18.97 inches)• Depth – 707.78 mm (27.85 inches) – without bezel721.62 mm (28.4 inches) – with bezel |
| Form Factor | 2U rack server |
| Embedded Management | • iDRAC9• iDRAC Service Module• iDRAC Direct• Quick Sync 2 wireless module |
| Bezel | Optional LCD bezel or security bezel |
| OpenManage Software | • OpenManage Enterprise• OpenManage Power Manager plugin• OpenManage SupportAssist plugin• OpenManage Update Manager plugin |
| Mobility | OpenManage Mobile |
| Integrations and Connections | OpenManage Integrations• BMC Truesight• Microsoft System Center• Red Hat Ansible Modules• VMware vCenter and vRealize Operations ManagerOpenManage Connections• IBM Tivoli Netcool/OMNIbus• IBM Tivoli Network Manager IP Edition• Micro Focus Operations Manager• Nagios Core• Nagios XI |
| Security | • Cryptographically signed firmware• Secure Boot• Secure Erase• Silicon Root of Trust• System Lockdown (requires iDRAC9 Enterprise or Datacenter)• TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC | 2 x 1 GbE LOM |
| Network Options | 1 x OCP 3.0 |
| GPU Options | Not supported |
| Ports | Front Ports• 1 x Dedicated iDRAC Direct micro-USB• 1 x USB 2.0• 1 x VGARear Ports• 1 x USB 2.0• 1 x Serial (optional)• 1 x USB 3.0• 2 x RJ-45• 1 x VGA (optional for liquid cooling configuration)Internal Ports• 1 x USB 3.0 (optional) |
| PCIe | Up to 5 x PCIe Gen4 slots / 1 x PCie Gen3 slots |
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS• Citrix Hypervisor• Microsoft Windows Server with Hyper-V• Red Hat Enterprise Linux• SUSE Linux Enterprise Server• VMware ESXi |
