DEM-310GT

Original price was: $80.75.Current price is: $76.71.

Model: DEM-310GT – D-Link Switch Accessories
Details: D-Link Gigabit SFP optical module, single mode, 10 km, wavelength 1310nm, LC connector
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: DEM-310GT Categories: , ,
Description

DEM-310GT Overview

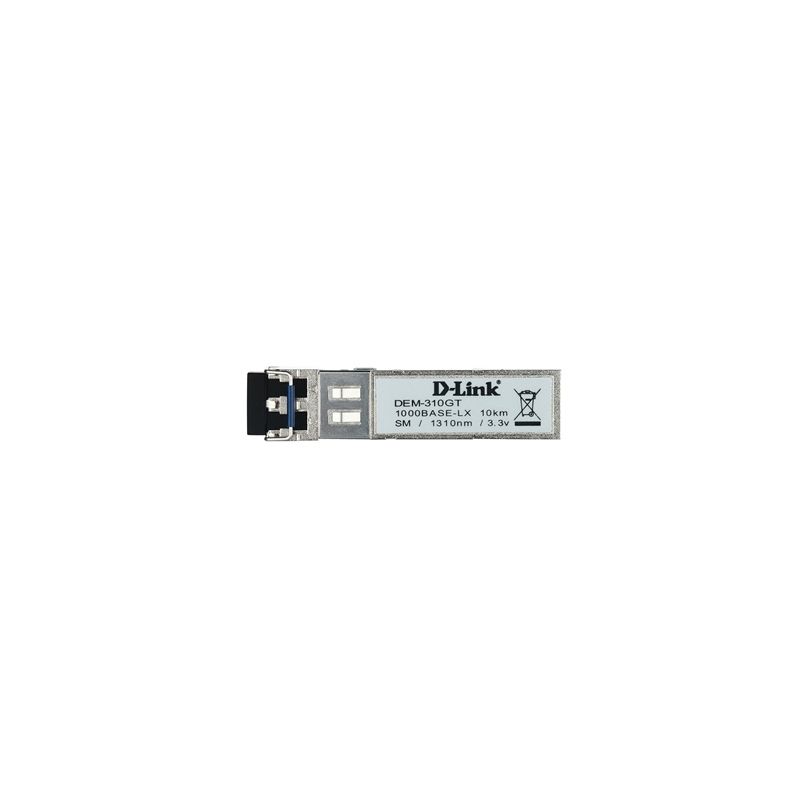

Quick Specs Figure 1 shows the appearance of DEM-310GT.

Table 1 shows the Quick Specs.

EMI FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B
Safety FDA/CDRH, TUV, cUL
Hot Pluggable Yes
RoHS Compliant Yes
MSA Compliant Yes
Hardware version F1
connector Duplex LC Connector
single/bi Direction single-direction
Wave length 1310 nm
Output Optical Power (TX Optical Power) MAX.: -3 dBm
Interface MIN.: – 21 dBm
Input Optical Power (RX Optical Power) MAX.: – 3 dBm
Cable Type – single-mode 9/125um fiber: reach 10km – multi-mode 50/125um fiber: reach 2km – multi-mode 62.5/125um fiber: reach 550m
Sensitivity -21 dBm
Power 3.3V
Max Input Current 300mA
Power Budget (MIN Power Budget) 11.5 dB
MAX Power Budget 18dB
Heat Generated 1.78kJ/h
Operation Temperature 0-70°C
Storage Temperature -40-85°C
Humidity (Operating) 10% ~ 90%
Dimension ( W x D x H ) 13.4mm x 56.4mm x 10.35mm
Humidity (Storage) 5% ~ 90%
Weight 16.5g
Speed 1Gbps
Compliant Standard IEEE-802.3z 1000BASE-LX
Fiber Media support Single-Mode
Transceiver Type SFP
Fiber Channel FC-PI standard 100-SM-LC-L
Distance 10KM

Get more information
Do you have any question about the DEM-310GT?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

Not Available.
