-5%
DEM-311GT
Model: DEM-311GT – D-Link Switch Accessories
Details: D-Link Gigabit SFP optical module, multi-mode, 550 meters, wavelength 850nm, LC connector
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DEM-311GT Overview

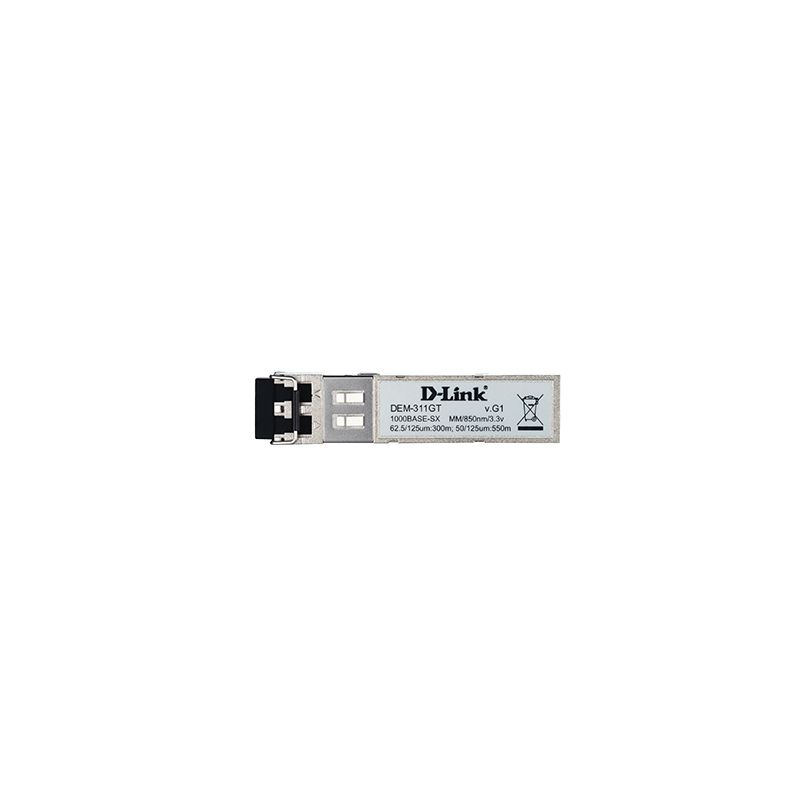

Quick Specs Figure 1 shows the appearance of DEM-311GT.
Table 1 shows the Quick Specs.
| EMI: | FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B |
| Safety | FDA/CDRH, TUV, cUL |
| Hot Pluggable | Yes |
| MSA Compliant | Yes |
| RoHS Compliant | Yes |
| Hardware version | F1 |
| connector | Duplex LC Connector |
| single/bi Direction | single-direction |
| Wavelength | 850 nm |
| Output Optical Power (TX Optical Power) | MAX.: -4 dBm |
| Interface | MIN.: -17 dBm |
| Input Optical Power (RX Optical Power) | MAX.: -3 dBm |
| Sensitivity | -17 dBm |
| Cable Type | – multi-mode 50/125um fiber: reach 550m – multi-mode 62.5/125um fiber: reach 275m |
| Power | 3.3V |
| Max Input Current | 240mA |
| Power Budget (MIN Power Budget) | 7.5dB |
| MAX Power Budget | 13dB |
| Heat Generated | 1.54kJ/h |
| Operation Temperature | 0-70°C |
| Storage Temperature | -40-85°C |
| Humidity (Operating) | 10% ~ 90% |
| Humidity (Storage) | 5% ~ 90% |
| Weight | 15.5g |
| Dimension ( W x D x H ) | 13.4mm x 56.4mm x 10.35mm |
| Speed | 1Gbps |
| Compliant Standard | IEEE-802.3z 1000BASE-SX |
| Transceiver Type | SFP |
| Fiber Channel FC-PI standard | 100-M5-SN-I and 100-M6-SN-I |
| Fiber Media support | Multi-Mode |
| Distance | 550M |
