-5%
DES-1005C-CN
Model: DES-1005C-CN – D-Link 100M Unmanaged Switches
Details: D-Link Ports: 5 100M electrical ports, switching capacity: 1G, packet forwarding rate: 0.744M, size: 100x71x27mm plastic case, power supply: 5V/0.6A external power supply, non-network management switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DES-1005C-CN Overview

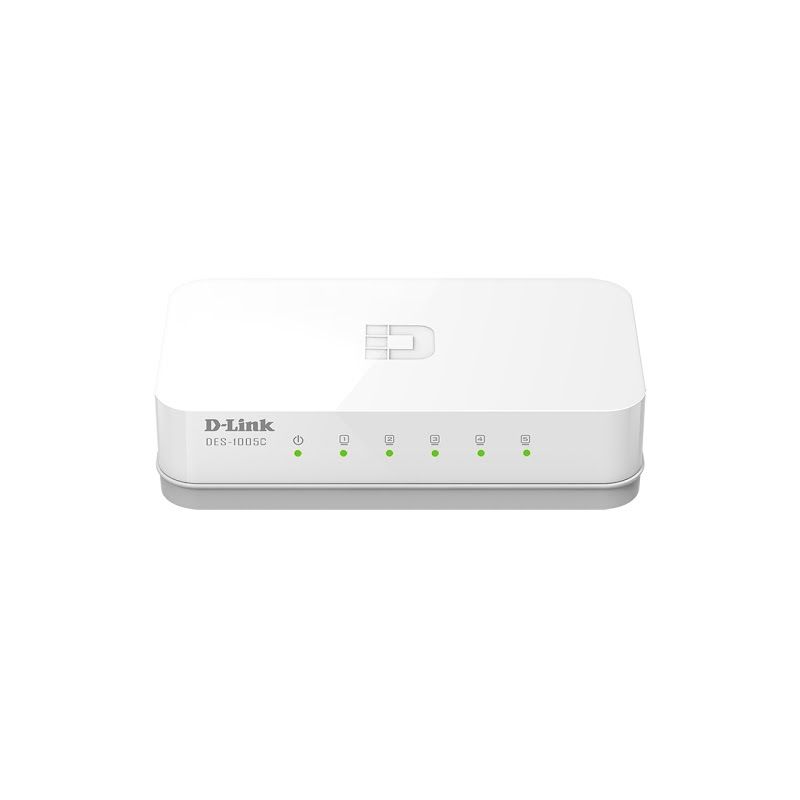

Quick Specs Figure 1 shows the appearance of DES-1005C-CN.
Table 1 shows the Quick Specs.
| 100Base-TX Interface | 5 |
| Auto MDI/MDIX | Yes |
| Switching Capacity | 1 Gbps |
| Max. Packet Forwarding Rate | 0.74 Mpps |
| Store & ForwardingForwading | Yes |
| Dimension | 88x48x21.45mm |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | – 40 ~ 70 °C |
| Operation Humidity | 10% ~ 90% RH |
| Storage Humidity | 5% ~ 95% RH |
| Maximum Power Consumption | 0.784 W |
| Standby Power Consumption | 0.4 W |
| Maximum Heat Dissipation | 0.406 BTU/h |
| MTBF | 1,785,631 hours |
| Power Input | DC : 5V, 0.55A |
| Packet Buffer Size | 96K bytes |
| Fan | Fanless |
| Energy Efficient Ethernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| MAC Address Table Size | 2,000 |
| 802.3x Flow Control | Yes |
| Head-of-Line (HOL) Blocking Prevention | Yes |
| Jumbo Frame | 2048 bytes |
