DES-1008A
Model: DES-1008A – D-Link 100M Unmanaged Switches
Details: D-Link Ports: 8 100M electrical ports, backplane bandwidth: 1.6G, packet forwarding rate: 1.2M, size: 142x79x24mm (5.6 inches, plastic case), power supply: DC 5V/0.55A external power supply, non-network management switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DES-1008A Overview

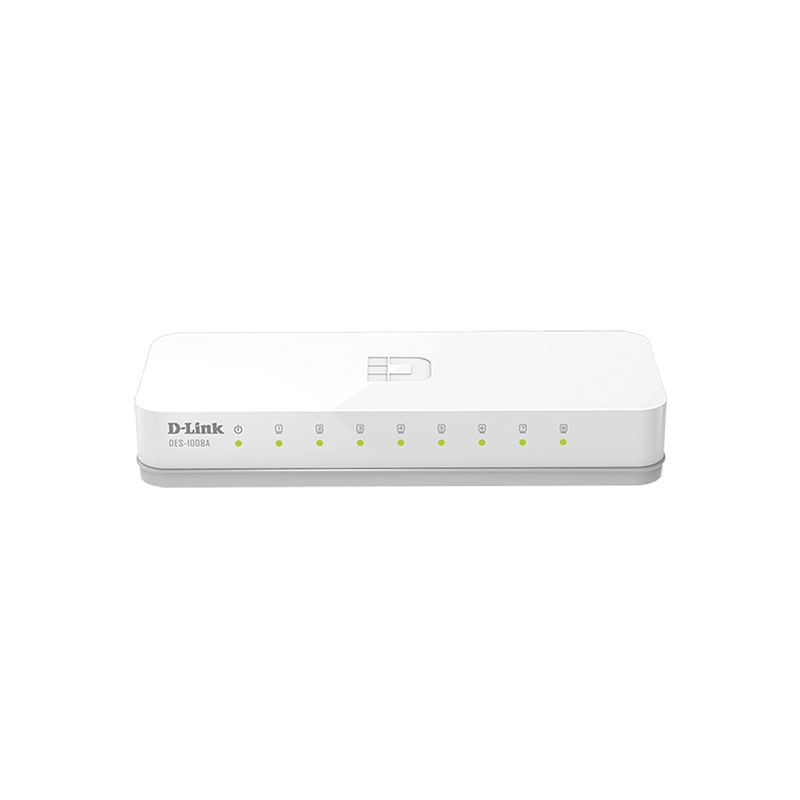

Quick Specs Figure 1 shows the appearance of DES-1008A.
Table 1 shows the Quick Specs.
| Auto MDI/MDIX | Yes |
| Switching Capacity | 1.6 Gbps |
| Max. Packet Forwarding Rate | 1.19 Mpps |
| Store & Forwarding Forwading | Yes |
| Dimension | 141.5×78.5×23.8mm |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | – 10 ~ 70 °C |
| Operation Humidity | 10% ~ 90% RH |
| Storage Humidity | 5% ~ 90% RH |
| Maximum Power Consumption | 2.19 W |
| Maximum Heat Dissipation | 7.47228 BTU/hr |
| Acoustic | 0 dB |
| MTBF | 2,137,319 hours |
| Power Input | AC：100 ~ 240 V |
| Packet Buffer Size | 0.06 MB |
| FAN | Fanless |
| Comply witd RoHS 6 | Yes |
| MAC Address Table Size | 1,024 |
| 802.3x Flow Control | Yes |
