-5%
DES-1009P+
Model: DES-1009P+ – D-Link 100M Unmanaged POE Switches
Details: D-Link Ports: 8 100M PoE electrical ports + 1 Gigabit electrical ports, backplane bandwidth: 3.6G, packet forwarding rate: 2.7M, PoE power: single port maximum 30W/ machine maximum power 80W, power supply: DC 54V external Power supply, one-key VLAN function, size: 175x105x27mm (6.9 inches, iron case), desktop type can be wall-mounted, non-network management PoE switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DES-1009P+ Overview

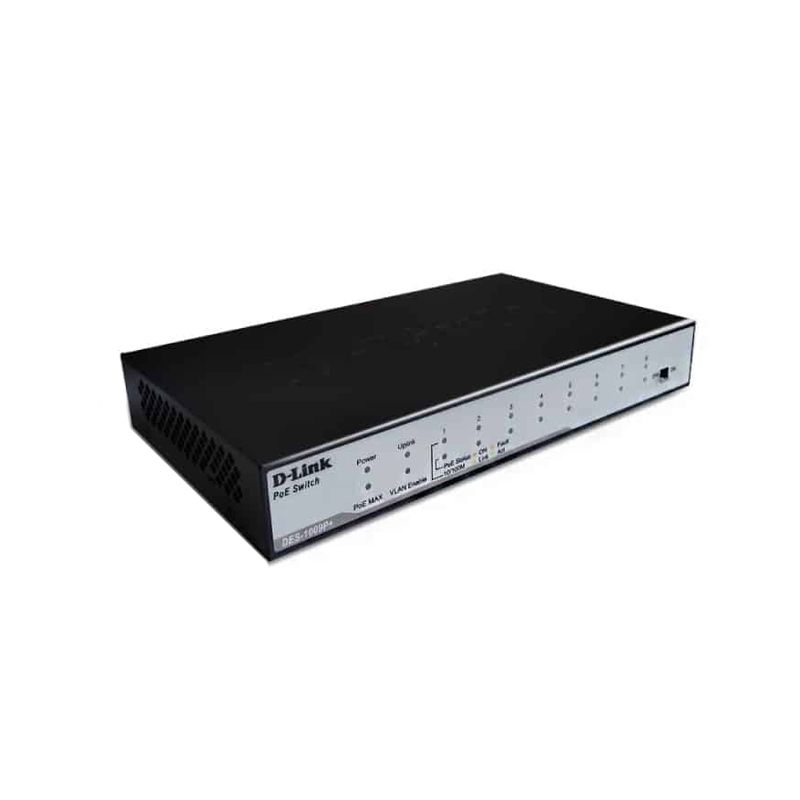

Quick Specs Figure 1 shows the appearance of DES-1009P+.
Table 1 shows the Quick Specs.
| Brand | D-Link |
| Model Name | DES-1009P+ |
| Number of Ports | 8 100M PoE electrical ports + 1 Gigabit electrical port |
| Backplane Bandwidth | 3.6 Gbps |
| Packet Forwarding Rate | 2.7 Mpps |
| PoE Power | Single port maximum 30W / Machine maximum power 80W |
| Power Supply | DC 54V external power supply |
| Special Features | One-key VLAN function |
| Case Material | Iron |
| Size | 175x105x27mm (6.9 inches) |
| Type | Desktop, wall-mountable |
| Network Management | Non-network management |
| Port Type | Electrical |
| Environmental Operating Temperature | – |
| Humidity | – |
| LED Indicators | Power, Link/Act |
| MAC Address Table | 8192 entries |
| Buffer Memory | 768 KB |
| Certification | CE, FCC |
| Warranty | 1 Year |
