DES-1016A
Model: DES-1016A – D-Link 100M Unmanaged Switches
Details: D-Link Ports: 16 100M electrical ports, backplane bandwidth: 3.2G, packet forwarding rate: 2.4M, size: 282x178x44mm (11.1 inches, iron case), desktop type can be mounted on the rack, power supply: AC 1000-240V built-in power supply, Unmanaged switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DES-1016A Overview

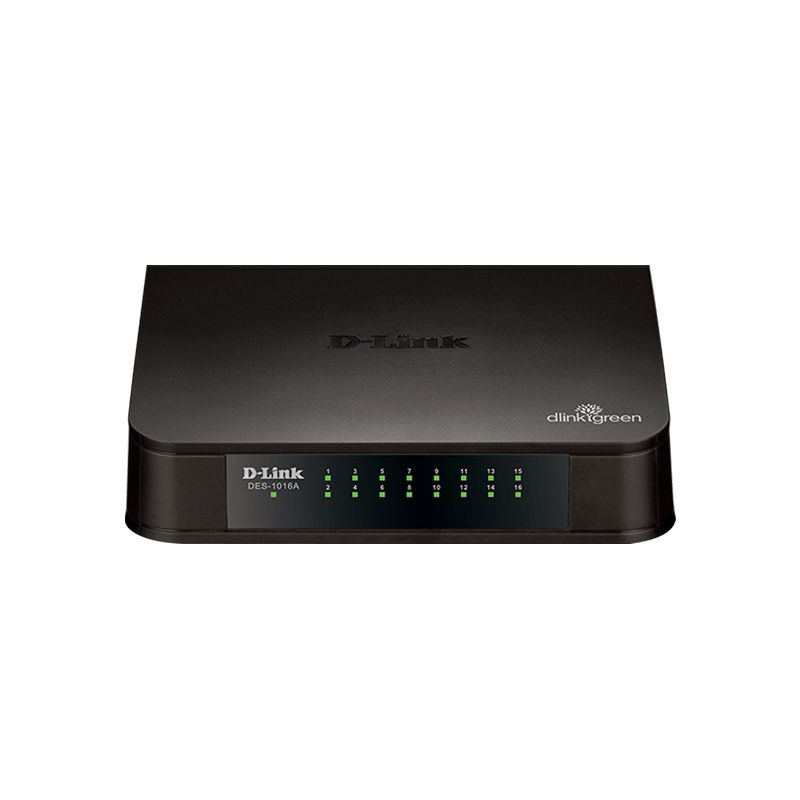

Quick Specs Figure 1 shows the appearance of DES-1016A.
Table 1 shows the Quick Specs.
| 100Base-TX Interface | 16 |
| Auto MDI/MDIX | Yes |
| Console Port | No |
| RJ-45 Management Port | No |
| Alarm Port | No |
| CompactFlash (CF) Card Slot | No |
| Secure Digital (SD) Card Slot | No |
| Switching Capacity | 3.2 Gbps |
| Max. Packet Forwarding Rate | 2.38 Mpps |
| Dimension | 155.7 × 122 × 41 mm |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | -40 to 70 ËšC |
| Operation Humidity | 10% ~ 90% RH |
| Storage Humidity | 5% ~ 90% RH |
| Maximum Power Consumption | 2.69 W |
| Power Input | AC: 100V ~ 240V |
| Packet Buffer Size | 2 MB |
| FAN | Fanless |
