DES-1024D
Model: DES-1024D – D-Link 100M Unmanaged Switches
Details: D-Link Ports: 24 100M electrical ports, backplane bandwidth: 4.8G, packet forwarding rate: 3.57M, size: 280x126x44mm (11 inches, iron case), power supply: AC 100-240V built-in power supply, rackable, non-network management switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DES-1024D Overview

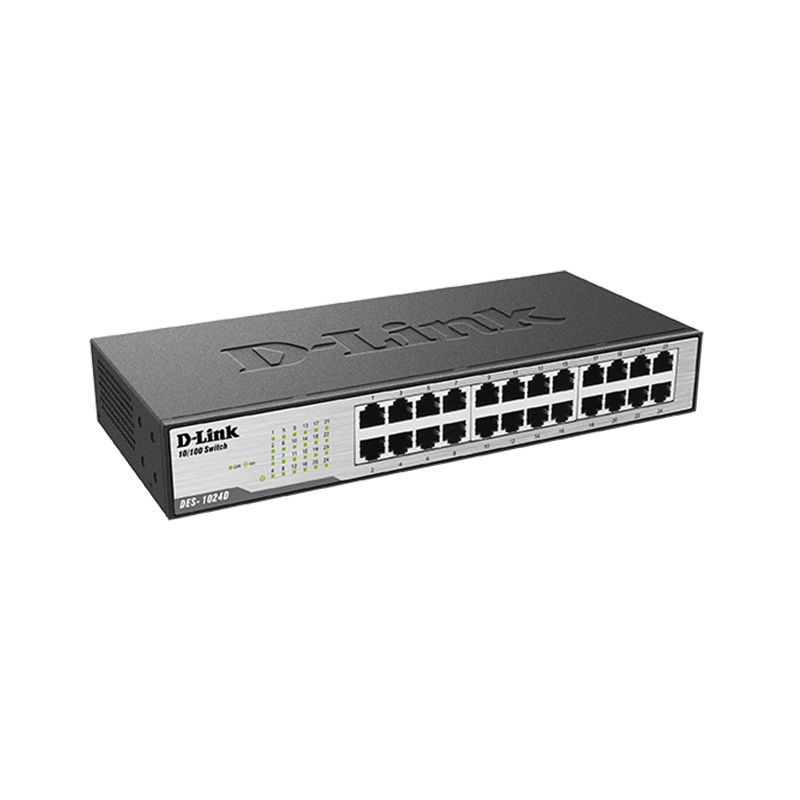

Quick Specs Figure 1 shows the appearance of DES-1024D.
Table 1 shows the Quick Specs.
| 100Base-TX Interface | 24 |
| Auto MDI/MDIX | Yes |
| Switching Capacity | 4.8 Gbps |
| Max. Packet Forwarding Rate | 3.57 Mpps |
| Store & Forwarding Forwading | Yes |
| Dimension | 280 × 150 × 44 mm |
| Storage Temperature | – 20 ~ 70 °C |
| Operation Humidity | 0% ~ 90% RH |
| Storage Humidity | 5% ~ 90% RH |
| Operation Temperature | 0 ~ 40 °C |
| Operating Altitude | 2000m and 40 degree C +/- 2 & Humidity 92% |
| Standby Power Consumption | 1.17 Watts |
| Acoustic | 0 dB |
| Maximum Power Consumption | 2.8 Watts |
| Power Input | AC：100 ~ 240 V |
| Packet Buffer Size | 2 MB |
| FAN | Fanless |
| Power Saving By Link Status | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| Comply with RoHS 6 | Yes |
| MAC Address Table Size | 8K |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| Number of Queue | 4 |
