DES-1026G
Model: DES-1026G – D-Link 100M Unmanaged Switches
Details: D-Link Ports: 24 100M electrical ports + 2 Gigabit photoelectric combined ports, backplane bandwidth: 8.8G, packet forwarding rate: 6.5M, size: 440x140x44mm (iron case), standard rack type, power supply: AC 100-240V Built-in power supply, non-managed switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DES-1026G Overview

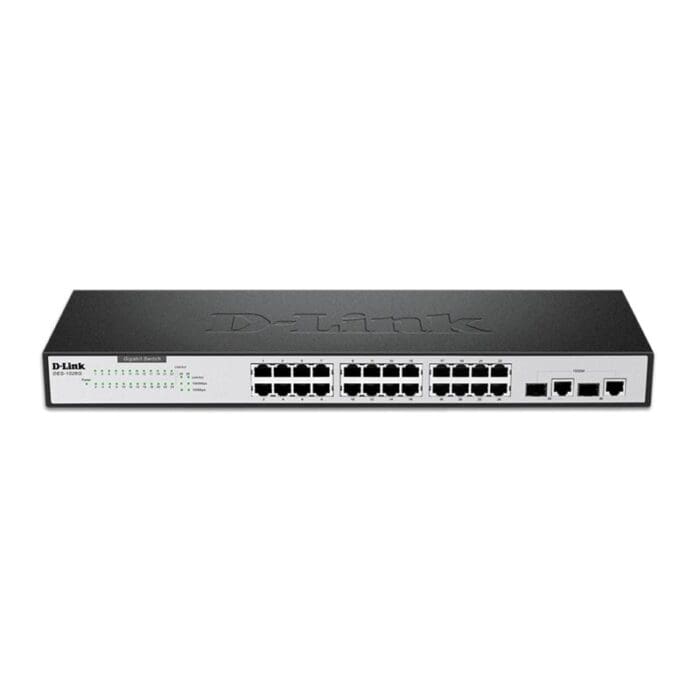

Quick Specs Figure 1 shows the appearance of DES-1026G.
Table 1 shows the Quick Specs.
| 100Base-TX Interface | 24 |
| Auto MDI/MDIX | Yes |
| Switching Capacity | 8.8 Gbps |
| Max. Packet Forwarding Rate | 0.1488 Mpps |
| Store & Forwarding Forwading | Yes |
| Dimension | 440 x 140 x 44 mm |
| Operation Temperature | 0 ~ 40°C |
| Storage Temperature | -10 ~ 70 °C |
| Operation Humidity | 10% ~ 90% |
| Storage Humidity | 5% ~ 95% |
| Maximum Power Consumption | 6.6 Watts |
| Standby Power Consumption | 3.25 Watts |
| Maximum Heat Dissipation | 22.8 BTU/h |
| MTBF | 652,038 hours |
| Packet Buffer Size | 512K Bytes |
| FAN | Fanless |
| Power Saving By Link Status | Yes |
| MAC Address Table Size | 8K |
