DES-1100-24
Model: DES-1100-24 – D-Link Intelligent Network Management Switches
Details: D-Link 24 100M electrical ports; Smart switch, desktop type can be installed on the rack, support Web management
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DES-1100-24 Overview

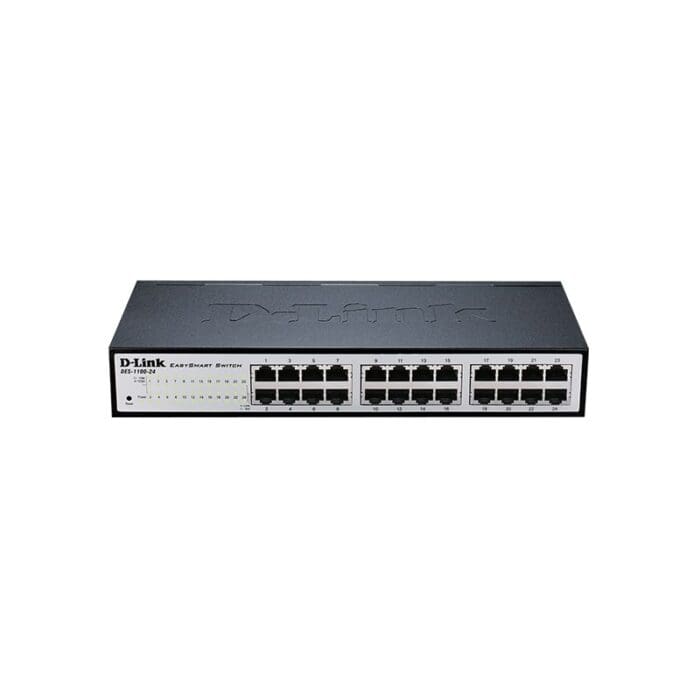

Quick Specs Figure 1 shows the appearance of DES-1100-24.
Table 1 shows the Quick Specs.
| Port-based Bandwidtd Control | Yes |
| Two Rate tdree Color Marker (trTCM) | Yes |
| Class of Service (CoS) | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| Store & Forwarding Forwading | Yes |
| Comply witd RoHS 6 | Yes |
| 100Base-TX Interface | 24 |
| Auto MDI/MDIX | Yes |
| 10/100BASE-TX ports | 24 |
| CPU Speed | 50Mhz |
| DRAM Size | 8MB |
| Flash Memory Size | 1MBytes |
| Packet Buffer Size | 1.75Mbits |
| FAN | Fanless |
| Loopback Detection (LBD) | Yes |
| MAC Address Table Size | 8K |
| IGMP Snooping | Yes |
| Max IGMP Snooping Groups | 32 |
| 802.1AX Link Aggregation | Yes |
| 802.3ad Link Aggregation | Yes |
| Max Port Per Link Aggregation Group | 4 |
| Web-based GUI | Yes |
| Port Mirroring | Yes |
| Switch Capacity | 4.8 Gbps |
| Max. Packet Forwarding Rate | 3.57 Mpps |
| Power Input | AC: 100-240V |
| Number of Queue | 2 |
| Strict Priority Queue (SPQ) | Yes |
| Queue Handling | Yes |
| Broadcast/Multicast/Unicast Storm Control | Yes |
| 802.1Q VLAN | Yes |
| Auto Surveillance VLAN | Yes (Surveillance VLAN) |
| VLAN Groups | 32 |
| Port-based VLAN | Yes |
| Dimension | 280 mm x 125 mm x 44mm |
| Operation Temperature | 0-40°C |
| Storage Temperature | -10-70°C |
| Operation Humidity | 10%-95% RH |
| Storage Humidity | 5% ~ 95% RH |
| Operating Altitude | 2000m |
| Maximum Power Consumption | 7.68 W |
| Standby Power Consumption | 2.87Watts |
| Maximum Heat Dissipation | 26.20 BTU/h |
| Acoustic | 0 dBs |
| MTBF | 562,066 hours |
