DES-85-24GE-TXE
Model: DES-85-24GE-TXE – D-Link Core Switch Line Cards
Details: D-Link 24-port gigabit electrical (RJ45), 4-port multiplexed gigabit optical service board (SFP), enhanced board
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DES-85-24GE-TXE Overview

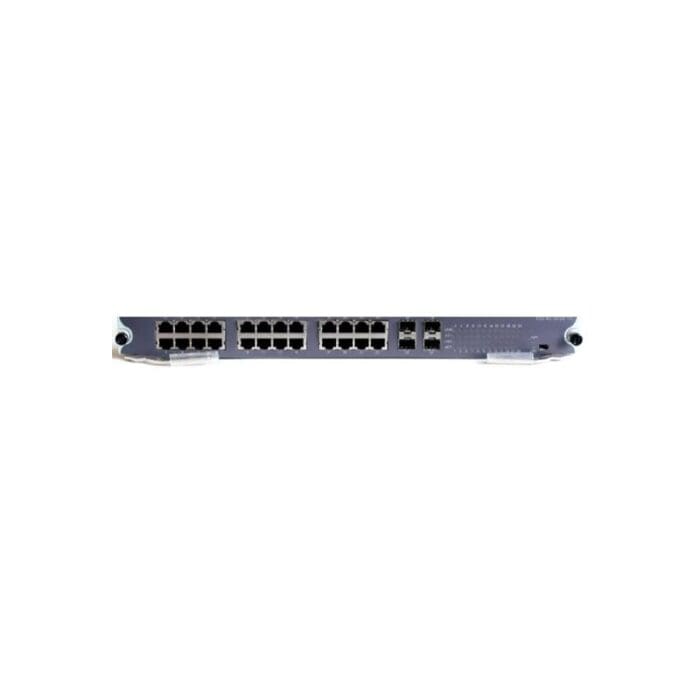

Quick Specs Figure 1 shows the appearance of DES-85-24GE-TXE.
Table 1 shows the Quick Specs.
| Brand | D-Link |
| Model | DES-85-24GE-TXE |
| Ports | 24-port gigabit electrical (RJ45) |
| Multiplexed Ports | 4-port multiplexed gigabit optical service board (SFP) |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.7 Mpps |
| Power Consumption | 20 Watts |
| Dimensions | 440 mm x 310 mm x 44 mm |
| Management | SNMP, RMON, Telnet, Web-based |
| VLAN | Supports 4K VLANs simultaneously |
| Temperature Range | 0��C to 40��C operating, -10��C to 70��C storage |
| Humidity | 10% to 90% non-condensing |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | Up to 9KB |
| QoS | 8 hardware queues per port |
| Security | 802.1x authentication, Access Control List (ACL) |
| Spanning Tree Protocols | STP, RSTP, MSTP |
| Link Aggregation | IEEE 802.3ad LACP |
| Static Route | Support for static routing |
| LED Indicators | Power, Link/Activity, Speed |
| Warranty | Limited Lifetime |
